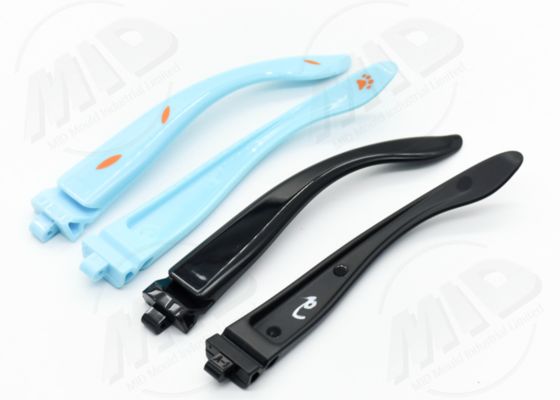

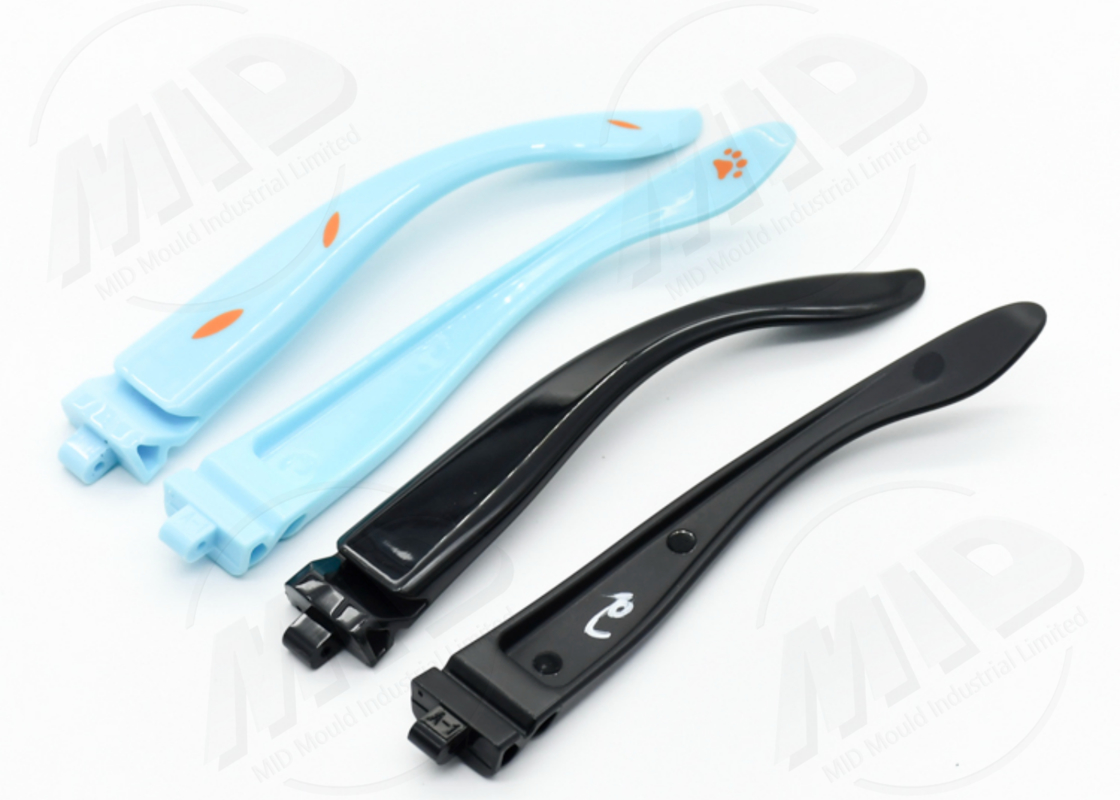

Custom Overmolding Mold High Precision Plastic Injection Overmolding Durable
-
Highlight
Custom Overmolding Mold
,Overmolding Mold High Precision
,Plastic Injection Overmolding Durable
-
Product NameOvermolding Mold
-
Shaping ModePlastic Injection Mould,Plastic Injection Molding,Compression Mould
-
MaterialSTEEL,ps,PP,Steel And Metal,aluminum
-
ProductVehicle Mould,Household Appliance,plastic Injection Mold,injection Machine Mold,Household Product
-
Mould Life250000-300000shots,200~1 M Available,300,000shots,000 Times
-
RunnerHot Runner\ Cold Runner,cold/hot
-
CavityMulti Cavity,as Per Client's Requirement
-
Product MaterialPlastic,Steel,PP,ABS,PS
-
Mold MaterialNAK80,H13,50#,P20,45#
-
Design SoftwareCAD,CAD/ProE/UG/SOLIDWORKS,CAD UG Moldflow,Solidworks,PROE
-
Mould MaterialP20/718/738/NAK80/S136,P20/718/2738/H13/S136/NAK80,718,SKD61 Etc,H13
-
ApplicationHome Appliance,Industrial,Automotive,various Range,Machine
-
CertificationISO9001,FDA,ISO13485
-
Mould BaseNon-Standard Plastic Injection Mould,World Standard,European Standard,LKM.HASCO,HASCO Standard
-
Surface TreatmentSandblasted,Texture,anodizing Black,clear Painting,Polishing
-
SizeAs Samples/drawings,customized Accepted,Customized Size
-
Mold RunnerHot&Cold Runner You Can Choose,Hot Runner And Code Runner
-
Mold Life000 To 1,500000 Shots,000 Shots,100000-1000000,50
-
Plastic MaterialPeek,ABS/PP/PS/PE/PVC/PA6/PA66..et,MC Nylon,Derlin,UHMW-PE
-
Place of OriginDongguan, China
-
Brand NameMID MOULD
-
CertificationISO9001:2015 Certificate, export standard compliant
-
Minimum Order Quantity1 set
-
PriceUSD $3,000–$50,000 per set (depending on complexity)
-
Packaging DetailsWooden case + anti-rust oil + protective film + packing list
-
Delivery Time25–45 working days (longer for complex tools)
-
Payment Terms50% deposit + 30% upon first sample + 20% after sample approval or before final mold shipment
-
Supply Ability20–35 sets per month, depending on structure
Custom Overmolding Mold High Precision Plastic Injection Overmolding Durable
Custom Overmolding Molds High Precision Plastic Tooling Durable Efficient And Cost Saving
Durable, Efficient and Cost-Saving Manufacturing Solution
Product Description
Overmolding combines soft plastic or rubber with a hard substrate through secondary injection molding to create a single-piece product. This process significantly improves product comfort, wear resistance, and appearance, and is a highly efficient and commonly used process in modern plastics processing.
Process Flow
- Mold Structure Design: Determine the interface between hard and soft materials
- CAE Analysis: Verify melt flow and adhesion properties
- CNC Machining: Create high-precision mold cavities
- Mold Assembly: Install locating pins and cooling system
- Mold Trial Inspection: Test the adhesion strength and dimensional accuracy of the secondary overmolding
Product Specifications
| Item | Parameter | Description |
|---|---|---|
| Mold Type | Overmolded Injection Mold | |
| Mold Material | P20, 718H, S136 | |
| Number of Cavities | 1–6 | |
| Mold Life | 500,000–1,000,000 cycles | |
| Surface Treatment | Polishing, Nitriding, Sandblasting | |
| Applicable Materials | PC, ABS, PA, TPE, TPU | |
| Overmolding Method | Overmolding, Multi-material Combination | |
| Product Accuracy | ±0.015mm | |
| Cooling System | Independent Water Cooling | |
| Product Cycle | 45–70 Days |
Product Advantages
- One-piece molding reduces assembly steps
- Improves product anti-slip properties and comfort
- Beautiful surface, wear-resistant and durable
- Suitable for high-volume and stable production
Frequently Asked Questions
Q: What products are suitable for overmolding?
A: Suitable for plastic parts requiring anti-slip properties, aesthetics, or dual-material structures.
Q: What is the precision of the overmolding mold?
A: Up to ±0.015mm.
Q: Can automated production be achieved?
A: Yes, it can be used with a robot for inserting and removing parts.
Q: What is the mold lifespan?
A: Generally between 500,000 and 1,000,000 mold cycles.
Q: Can overmolding be provided in different colors?
A: Yes, we support dual- or multi-color solutions.
Customized Services
We can customize the number of cavities, surface finish, overmolding method, and automation interfaces to meet customer requirements, providing a comprehensive solution.
Related Cases
Our services cover all industries and reach all parts of the world.
