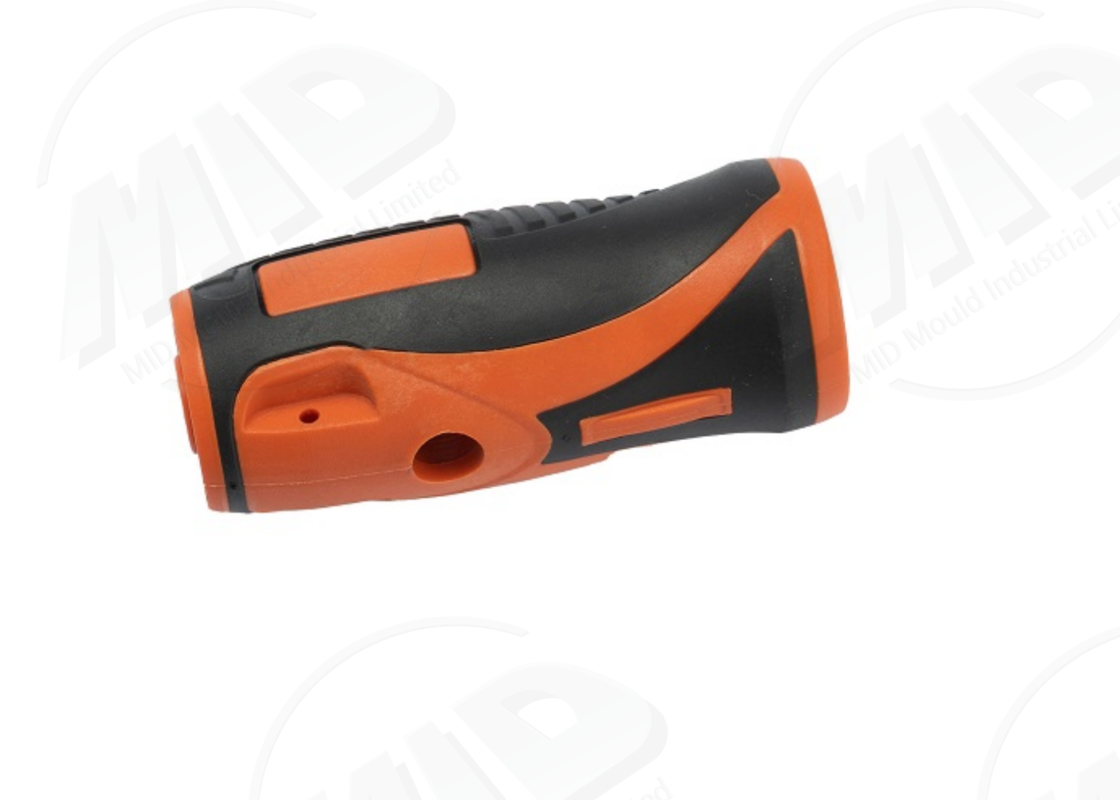

High Accuracy Plastic Mold Die Polishing Injection Moulding Tools Efficiency

High Accuracy Plastic Mold Die Polishing Injection Moulding Tools Efficiency

Products - Overmolding Mold
  • Highlight

    High Accuracy Plastic Mold Die

    ,

    Polishing Injection Moulding Tools

    ,

    Injection Moulding Tools Efficiency

  • Product
    Plastic Mold Die
  • Shaping Mode
    Plastic Injection Mould,Plastic Injection Molding,Compression Mould
  • Material
    STEEL,ps,PP,Steel And Metal,aluminum
  • Mould Life
    250000-300000shots,200~1 M Available,300,000shots,000 Times
  • Runner
    Hot Runner\ Cold Runner,cold/hot
  • Cavity
    Multi Cavity,as Per Client's Requirement
  • Product Material
    Plastic,Steel,PP,ABS,PS
  • Mold Material
    NAK80,H13,50#,P20,45#
  • Design Software
    CAD,CAD/ProE/UG/SOLIDWORKS,CAD UG Moldflow,Solidworks,PROE
  • Mould Material
    P20/718/738/NAK80/S136,P20/718/2738/H13/S136/NAK80,718,SKD61 Etc,H13
  • Application
    Home Appliance,Industrial,Automotive,various Range,Machine
  • Product Name
    Plastic Injection Mould,injection Machine Mold,Shanghai Factory Cheap Plastic Component Injection Mold,High Quality Virgin Raw Material Custom Plastic Injection Mold Product,Gear Parts
  • Certification
    ISO9001,FDA,ISO13485
  • Mould Base
    Non-Standard Plastic Injection Mould,World Standard,European Standard,LKM.HASCO,HASCO Standard
  • Surface Treatment
    Sandblasted,Texture,anodizing Black,clear Painting,Polishing
  • Size
    As Samples/drawings,customized Accepted,Customized Size
  • Mold Runner
    Hot&Cold Runner You Can Choose,Hot Runner And Code Runner
  • Mold Life
    000 To 1,500000 Shots,000 Shots,100000-1000000,50
  • Plastic Material
    Peek,ABS/PP/PS/PE/PVC/PA6/PA66..et,MC Nylon,Derlin,UHMW-PE
  • Place of Origin
    Dongguan, China
  • Brand Name
    MID MOULD
  • Certification
    ISO9001:2015 Certificate, export standard compliant
  • Minimum Order Quantity
    1 set
  • Price
    USD $3,000–$50,000 per set (depending on complexity)
  • Packaging Details
    Wooden case + anti-rust oil + protective film + packing list
  • Delivery Time
    25–45 working days (longer for complex tools)
  • Payment Terms
    50% deposit + 30% upon first sample + 20% after sample approval or before final mold shipment
  • Supply Ability
    20–35 sets per month, depending on structure

High Accuracy Plastic Mold Die Polishing Injection Moulding Tools Efficiency

  • High Accuracy Plastic Mold Die Polishing Injection Moulding Tools Efficiency
Get Price Contact Now
Advanced Overmolding Injection Molds Custom Plastic Tooling High Accuracy And Efficiency
High accuracy and efficiency custom plastic tooling for overmolding applications.
Product Process
Overmolding uses a secondary injection molding process to create a secure bond between a hard substrate and a soft material. It is widely used in the manufacture of products requiring anti-slip, vibration resistance, and aesthetically pleasing appearance.
Process Flow
  • Mold Design and Material Selection
  • CAE Analysis of Flow and Overmolding Effects
  • CNC Precision Machining
  • Assembly of Cooling and Guiding Systems
  • Mold Trial and Performance Verification
Product Specifications
Item Parameter Description
Mold Type Overmolded Mold
Mold Material S136 NAK80 H13
Number of Cavities 2–8
Mold Life 600,000–1.2 Million Cycles
Surface Treatment Polishing, Chrome Plating, Sandblasting
Applicable Materials ABS, PC, PP, PA + TPE, TPU
Overmolding Method Overmolding, Thermal Bonding
Product Accuracy ±0.02mm
Cooling System Efficient Parallel Cooling
Product Cycle 50–80 Days
Product Advantages
  • Elegant and stable product finish
  • Improved user comfort and anti-slip performance
  • Long mold life suitable for mass production
  • Overmolding available in various colors and textures
FAQ
Q1: Can Overmolded Molds Produce Transparent Parts?
A1: Yes, it is suitable for transparent materials.
Q2: Is the Mold Suitable for Automated Production?
A2: Yes, it is compatible with robotic arm operation.
Q3: What is the lead time for overmolding molds?
A3: Typically 50–80 days.
Q4: What is the accuracy of the overmolding molds?
A4: Up to ±0.02mm.
Q5: Do you provide after-sales support?
A5: We provide complete after-sales maintenance and technical support.
Customized Services
We offer comprehensive customization services, including overmolding process, mold structure, color selection, and cooling system, to ensure that our customers' production needs are fully met.
