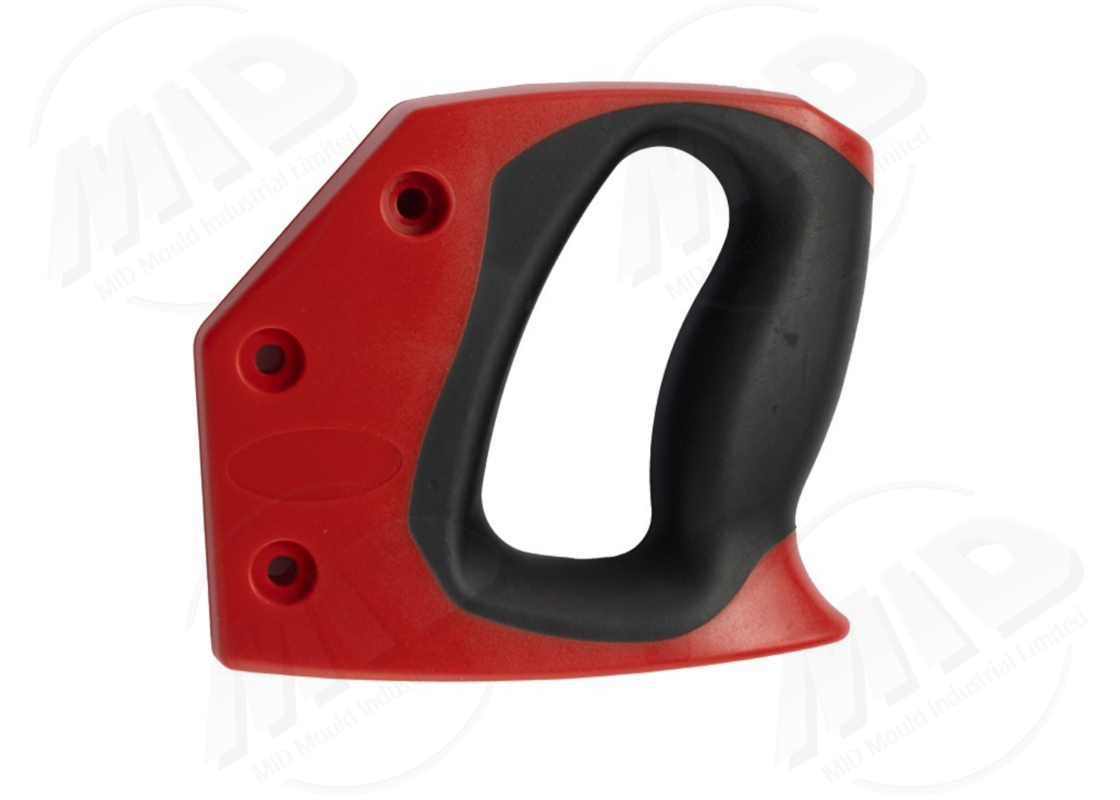

Customized Overmolding Mold 600K - 1.3M Cycles Mould For Plastic Injection
-
Highlight
Customized Overmolding Mold
,600K Cycles Mould For Plastic Injection
,1.3M Cycles Mould For Plastic Injection
-
Product NameOvermolding Mold
-
Shaping ModePlastic Injection Mould,Plastic Injection Molding,Compression Mould
-
MaterialSTEEL,ps,PP,Steel And Metal,aluminum
-
ProductVehicle Mould,Household Appliance,plastic Injection Mold,injection Machine Mold,Household Product
-
Mould Life250000-300000shots,200~1 M Available,300,000shots,000 Times
-
RunnerHot Runner\ Cold Runner,cold/hot
-
CavityMulti Cavity,as Per Client's Requirement
-
Product MaterialPlastic,Steel,PP,ABS,PS
-
Mold MaterialNAK80,H13,50#,P20,45#
-
Design SoftwareCAD,CAD/ProE/UG/SOLIDWORKS,CAD UG Moldflow,Solidworks,PROE
-
Mould MaterialP20/718/738/NAK80/S136,P20/718/2738/H13/S136/NAK80,718,SKD61 Etc,H13
-
ApplicationHome Appliance,Industrial,Automotive,various Range,Machine
-
CertificationISO9001,FDA,ISO13485
-
Mould BaseNon-Standard Plastic Injection Mould,World Standard,European Standard,LKM.HASCO,HASCO Standard
-
Surface TreatmentSandblasted,Texture,anodizing Black,clear Painting,Polishing
-
SizeAs Samples/drawings,customized Accepted,Customized Size
-
Mold RunnerHot&Cold Runner You Can Choose,Hot Runner And Code Runner
-
Mold Life000 To 1,500000 Shots,000 Shots,100000-1000000,50
-
Plastic MaterialPeek,ABS/PP/PS/PE/PVC/PA6/PA66..et,MC Nylon,Derlin,UHMW-PE
-
Place of OriginDongguan, China
-
Brand NameMID MOULD
-
CertificationISO9001:2015 Certificate, export standard compliant
-
Minimum Order Quantity1 set
-
PriceUSD $3,000–$50,000 per set (depending on complexity)
-
Packaging DetailsWooden case + anti-rust oil + protective film + packing list
-
Delivery Time25–45 working days (longer for complex tools)
-
Payment Terms50% deposit + 30% upon first sample + 20% after sample approval or before final mold shipment
-
Supply Ability20–35 sets per month, depending on structure
Customized Overmolding Mold 600K - 1.3M Cycles Mould For Plastic Injection
Custom Overmolding Mold For Plastic Injection With 600K-1.3M Cycles
Product Process
Overmolding involves secondary molding over the outer layer of a substrate, creating a robust, multi-material composite. This process enhances tactile feel, provides shock absorption, and improves decorative effects. Widely used in high-quality plastic parts production.
Process Flow
- Mold design and material matching confirmation
- Mold flow analysis optimizes flow channels and overmolding effects
- CNC high-precision machining
- Assembly positioning and cooling circuits
- Mold trial testing and optimization
Product Specifications
| Item | Parameter | Description |
|---|---|---|
| Mold Type | Overmolded injection mold | |
| Mold Material | NAK80, 718H, S136 | |
| Cavities | 2–10 | |
| Mold Life | 600,000–1.3 million cycles | |
| Surface Treatment | Polishing, Chrome Plating, Sandblasting | |
| Applicable Materials | ABS, PP, PC, TPE, TPU | |
| Overmolding Method | Overmolding, Thermal Bonding | |
| Product Accuracy | ±0.018mm | |
| Cooling System | Efficient multi-point cooling | |
| Product Cycle | 50–80 days |
Product Advantages
- Smooth, comfortable, and beautiful surface finish
- Multi-material one-piece molding for stable structure
- Improved anti-slip and shock-resistant performance
- Reduced assembly costs
FAQ
Q1: Can overmolding be used for transparent products?
A1: Yes, it is commonly used for lampshades, lenses, etc.
Q2: Does the mold support quick mold change?
A2: Yes, it can be combined with a quick clamping system.
Q3: Does the overmolding affect the dimensional accuracy of the product?
A3: No, the mold accuracy can reach ±0.018mm.
Q4: What is the typical mold delivery time?
A4: 50–80 days, depending on the complexity.
Q5: Is after-sales maintenance service provided?
A5: Yes, to ensure long-term stable operation of the mold.
Customization Service
We support customized mold structure, overmolding color, and cooling design to meet diverse customer needs.
