Overmolding Injection Molding Molds 718H Steel 1.5M Cycles Plastic Die Mould
-
Highlight
Overmolding Injection Molding Molds
,718H Steel Plastic Die Mould
,1.5M Cycles Plastic Die Mould
-
Product NameInjection Molding Molds
-
Shaping ModePlastic Injection Mould,Plastic Injection Molding,Compression Mould
-
MaterialSTEEL,ps,PP,Steel And Metal,aluminum
-
ProductVehicle Mould,Household Appliance,plastic Injection Mold,injection Machine Mold,Household Product
-
Mould Life250000-300000shots,200~1 M Available,300,000shots,000 Times
-
RunnerHot Runner\ Cold Runner,cold/hot
-
CavityMulti Cavity,as Per Client's Requirement
-
Product MaterialPlastic,Steel,PP,ABS,PS
-
Mold MaterialNAK80,H13,50#,P20,45#
-
Design SoftwareCAD,CAD/ProE/UG/SOLIDWORKS,CAD UG Moldflow,Solidworks,PROE
-
Mould MaterialP20/718/738/NAK80/S136,P20/718/2738/H13/S136/NAK80,718,SKD61 Etc,H13
-
ApplicationHome Appliance,Industrial,Automotive,various Range,Machine
-
CertificationISO9001,FDA,ISO13485
-
Mould BaseNon-Standard Plastic Injection Mould,World Standard,European Standard,LKM.HASCO,HASCO Standard
-
Surface TreatmentSandblasted,Texture,anodizing Black,clear Painting,Polishing
-
SizeAs Samples/drawings,customized Accepted,Customized Size
-
Mold RunnerHot&Cold Runner You Can Choose,Hot Runner And Code Runner
-
Mold Life000 To 1,500000 Shots,000 Shots,100000-1000000,50
-
Plastic MaterialPeek,ABS/PP/PS/PE/PVC/PA6/PA66..et,MC Nylon,Derlin,UHMW-PE
-
Place of OriginDongguan, China
-
Brand NameMID MOULD
-
CertificationISO9001:2015 Certificate, export standard compliant
-
Minimum Order Quantity1 set
-
PriceUSD $3,000–$50,000 per set (depending on complexity)
-
Packaging DetailsWooden case + anti-rust oil + protective film + packing list
-
Delivery Time25–45 working days (longer for complex tools)
-
Payment Terms50% deposit + 30% upon first sample + 20% after sample approval or before final mold shipment
-
Supply Ability20–35 sets per month, depending on structure
Overmolding Injection Molding Molds 718H Steel 1.5M Cycles Plastic Die Mould
Custom Overmolding Injection Mold 718H Steel 1.5M Cycles
High precision, long service life, and reliable quality overmolding solutions for enhanced product functionality and appearance.
Product Process

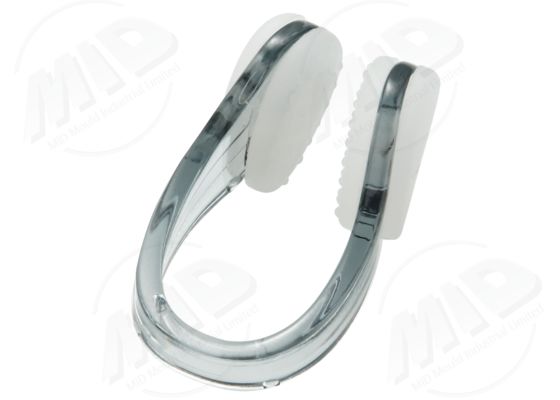

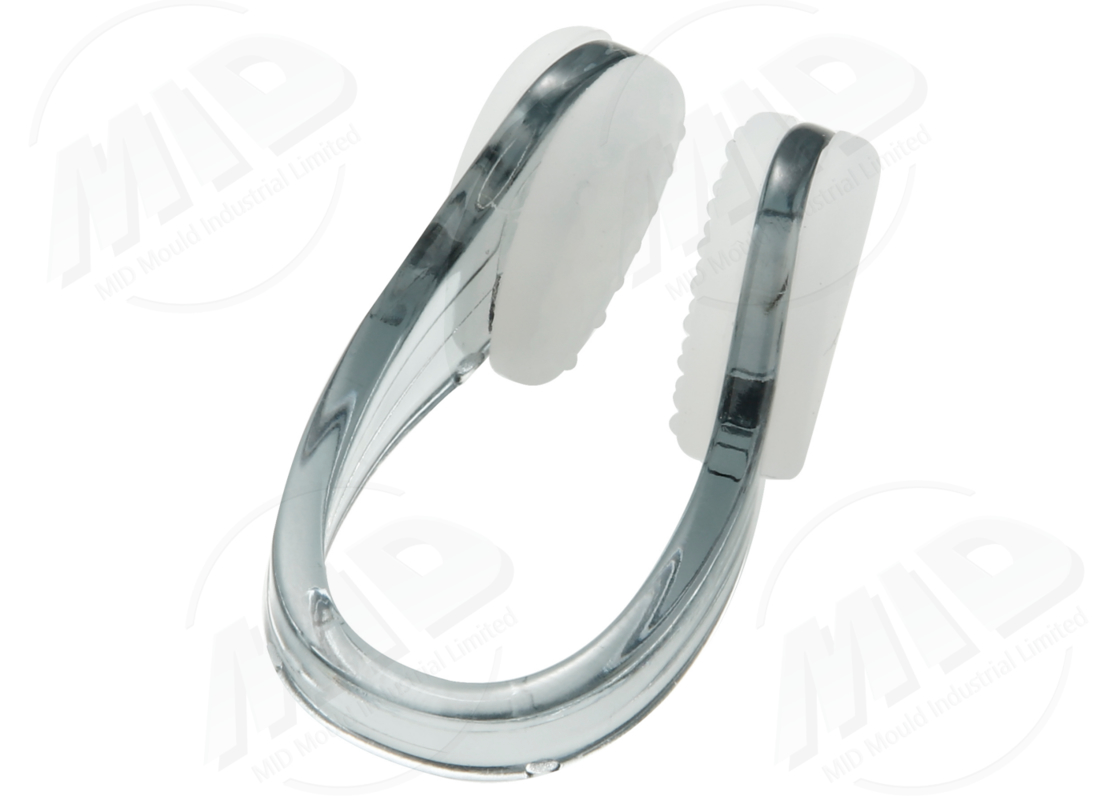

Overmolding applies a soft rubber or plastic layer to a hard substrate, improving grip, preventing slipping, resisting vibration, and enhancing aesthetics.
Process Flow
- Mold design and structure confirmation
- Mold flow analysis ensures fluidity and bonding
- Precision CNC and spark machining
- Assembly positioning and cooling device
- Mold trial and process optimization
Product Specifications
| Item | Parameter | Description |
|---|---|---|
| Mold Type: | Overmolded injection mold | |
| Mold Material: | 718H, NAK80, S136 | |
| Cavities: | 2–10 | |
| Mold Life: | 700,000–1.5 million cycles | |
| Surface Treatment: | Polishing, Sandblasting, Nitriding | |
| Applicable Materials: | PP, ABS, PC, PA, TPE, TPU | |
| Overmolding Method: | Overmolding, Thermal Bonding | |
| Product Accuracy: | ±0.018mm | |
| Cooling System: | Multi-circuit water cooling | |
| Product Cycle: | 55–85 days |
Product Advantages
- Elegant and pleasant product with a pleasant touch
- Stable structure and resistance to peeling
- One-piece molding reduces subsequent processing requirements
- Applicable to a variety of plastic combinations
FAQ
Q1: Can the overmolding thickness be controlled?
A1: Yes, it can be precisely controlled through mold design.
Q2: Can overmolding be done with transparent materials?
A2: Yes, it is commonly used for lighting and decorative parts.
Q3: Is overmolding suitable for small batches?
A3: Yes, but it is more recommended for medium to large batches.
Q4: Can overmolding be used in the medical field?
A4: Yes, medical-grade plastic is required.
Q5: What is the mold delivery time?
A5: Typically 55–85 days.
Customized Services
We support the development of various material combinations, color effects, and automated interfaces to meet diverse customer applications.
Related Cases
Our services cover all industries and reach all parts of the world.
