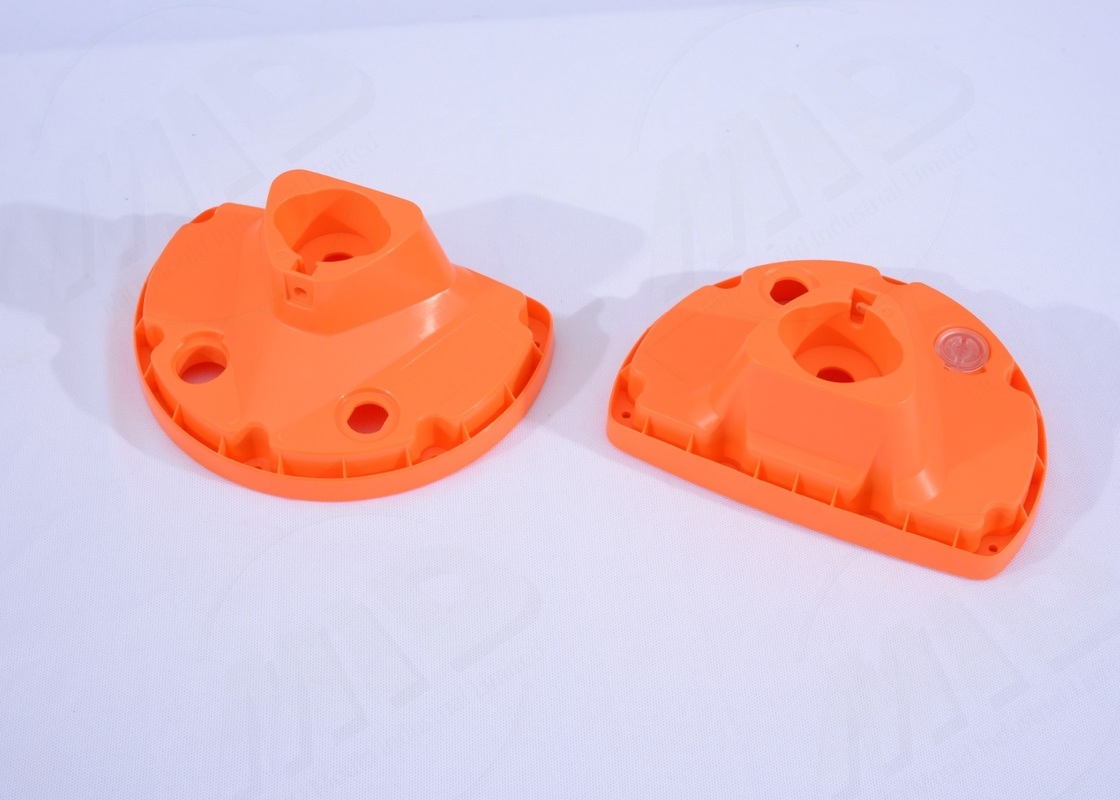

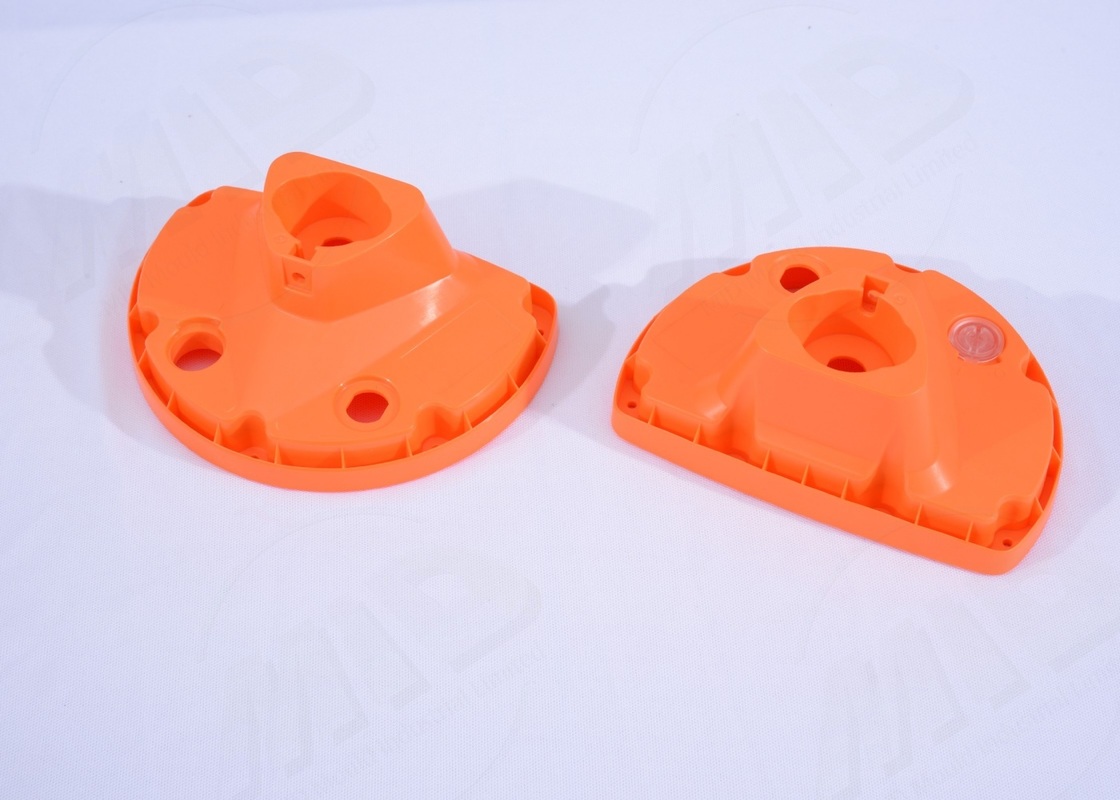

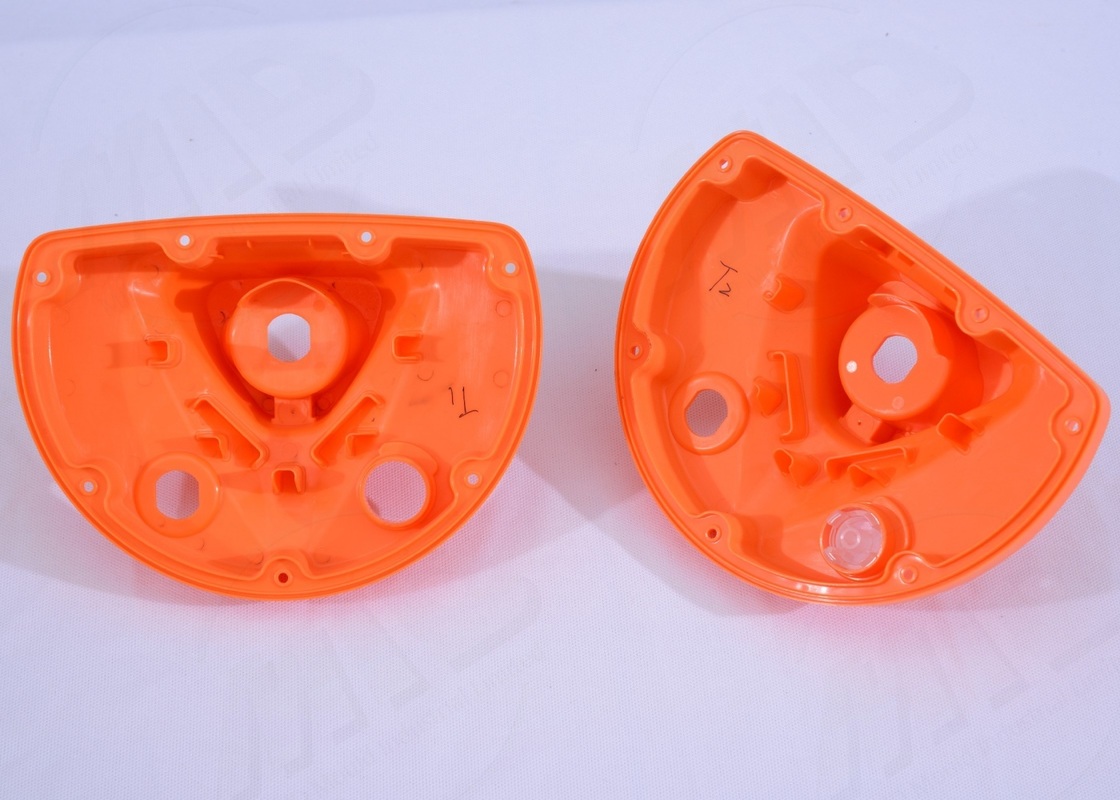

PBT LCP PPS Electronic Injection Molding Insulation Plastic Mold Parts High Temperature OEM
-
Highlight
PPS Electronic Injection Molding
,Insulation Plastic Mold Parts
,High Temperature Plastic Mold Parts
-
ProductElectronic Injection Molding
-
Design SoftwareUG,CAD,PROE,etc,AutoCAD
-
CavityMulti Cavity,Single/multi,Single Cavity\ Multiple Cavity,Single & Multi,Family Mold
-
Surface TreatmentPolish. Etched. Texture,Polishing,etc,screen Printing,Plating
-
RunnerHot Runner\ Cold Runner,Cool/Hot
-
Mould MaterialP20/718/738/NAK80/S136,2738,SKH-9,XW-42,8407
-
MaterialABS,PP,PC,POM,Steel
-
ColorPantone Or Ral Colors,Natural Or As Required,Yellow,As Customers' Requirements,As Customers' Choice
-
SizeAccording To Your Drawing,Customers Request,Customized
-
Tolerance+/-0.02mm,0.001mm
-
Place of OriginDongguan, China
-
Brand NameMID MOULD
-
CertificationISO9001, ROHS, UL (if applicable)
-
Minimum Order Quantity500–1000 pcs (adjustable depending on project)
-
PriceUSD $0.1–$3.5 per piece (depends on material, part size, and volume)
-
Packaging DetailsPlastic bag + carton box, or customized packaging
-
Delivery Time7–20 working days (faster for small batch)
-
Payment Terms50% deposit + balance before shipment
-
Supply AbilityUp to 50,000 pcs per day depending on mold cavitation and cycle time
PBT LCP PPS Electronic Injection Molding Insulation Plastic Mold Parts High Temperature OEM
Electronic Injection Molding Terminal Insulation Housing PBT LCP PPS High Temperature OEM
Universal electronic terminal insulation housing made from PBT, LCP, and PPS materials, designed for high-temperature and high-frequency environments.
Process Introduction
This product combines precision injection molding with high-temperature insulation technology to ensure terminal stability in demanding conditions.
Process Flow
- Material Drying
- Precision Injection Molding of Insulating Parts
- Insert Molded Metal Terminals (Optional)
- Surface Finishing
- Finished Product Inspection
Product Parameters
| Parameter | Value Range/Description |
|---|---|
| Material | PBT, LCP, PPS |
| Accuracy | ±0.02 mm |
| Temperature Range | -40°C to 180°C |
| Features | Insulation, Heat Resistance, and Wear Resistance |
| Mold Life | 600,000–1,000,000 Cycles |
| Molding Cycle | 8–15 Seconds |
| Applications | Terminal Insulation Housings, Connectors |
| Dimensions | Precision Small Parts |
| Protection Rating | IP20–IP40 |
| Service Life | ≥10 Years |
Uses and Benefits
- Applicable to power terminals, connectors, and signal transmission devices
- Provides insulation and protection
Advantages
- High Insulation Performance
- High Temperature and Wear Resistance
- Miniaturized Precision Molding
- Environmentally Friendly
- High Consistency in Mass Production
FAQ
Is it insulated?
Yes, with excellent insulation performance.
Is insert molding supported?
Yes.
Is it heat-resistant?
Up to 180°C.
Are custom sizes available?
OEM is supported.
Is it environmentally certified?
RoHS/REACH compliant.
Customized Mold Customization
Customization is available for connector size, insulation shell shape, insert design, logo, and color to meet diverse electronic terminal needs.
