Custom Electronic Injection Molding SPD Plastic Mould Parts UL94-V0
-
Highlight
Custom Electronic Injection Molding
,SPD Plastic Mould Parts
,Custom Plastic Mould Parts
-
ProductElectronic Injection Molding
-
Shaping ModePlastic Injection Mould,Silicone Mould,Medical Plastic Injection Molding
-
Surface TreatmentPolishing,Painting,Texturing Or Polishing And So On,Smooth,Texturing
-
CavityMulti Cavity,Single/multi,Single/Family,as Request,32 Cavities
-
Mould MaterialP20/718/738/NAK80/S136,NAK80,P20,S136,718
-
Mould BaseLKM,HASCO,LKM Or HASCO And So On,or Mr.Mould Customed,5CrNiMo /60# Steel
-
Design SoftwareCAD,UG,Pro-E,CAXA Ect.,UG PROE CAD
-
RunnerHot Runner\ Cold Runner,Hot/cold
-
KeywordMould Maker,medical Mould,plastic Injection Syringe Mold
-
Place of OriginDongguan, China
-
Brand NameMID MOULD
-
CertificationISO9001, ROHS, UL (if applicable)
-
Minimum Order Quantity500–1000 pcs (adjustable depending on project)
-
PriceUSD $0.1–$3.5 per piece (depends on material, part size, and volume)
-
Packaging DetailsPlastic bag + carton box, or customized packaging
-
Delivery Time7–20 working days (faster for small batch)
-
Payment Terms50% deposit + balance before shipment
-
Supply AbilityUp to 50,000 pcs per day depending on mold cavitation and cycle time

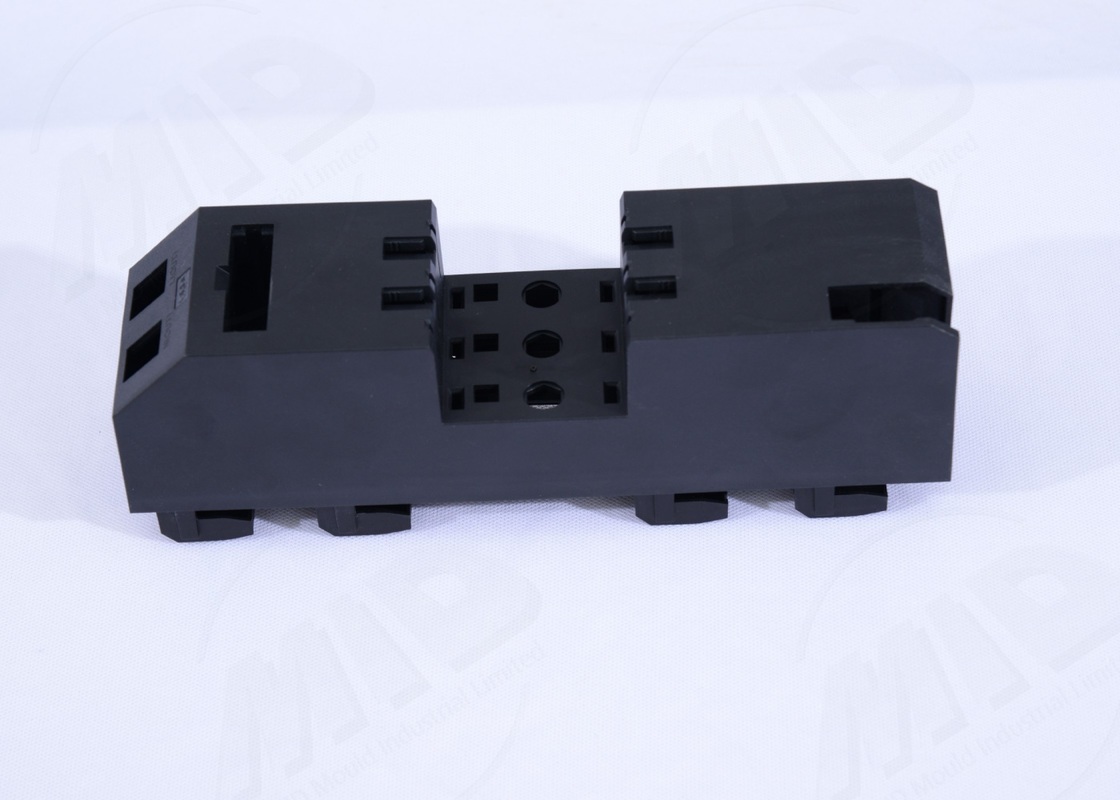

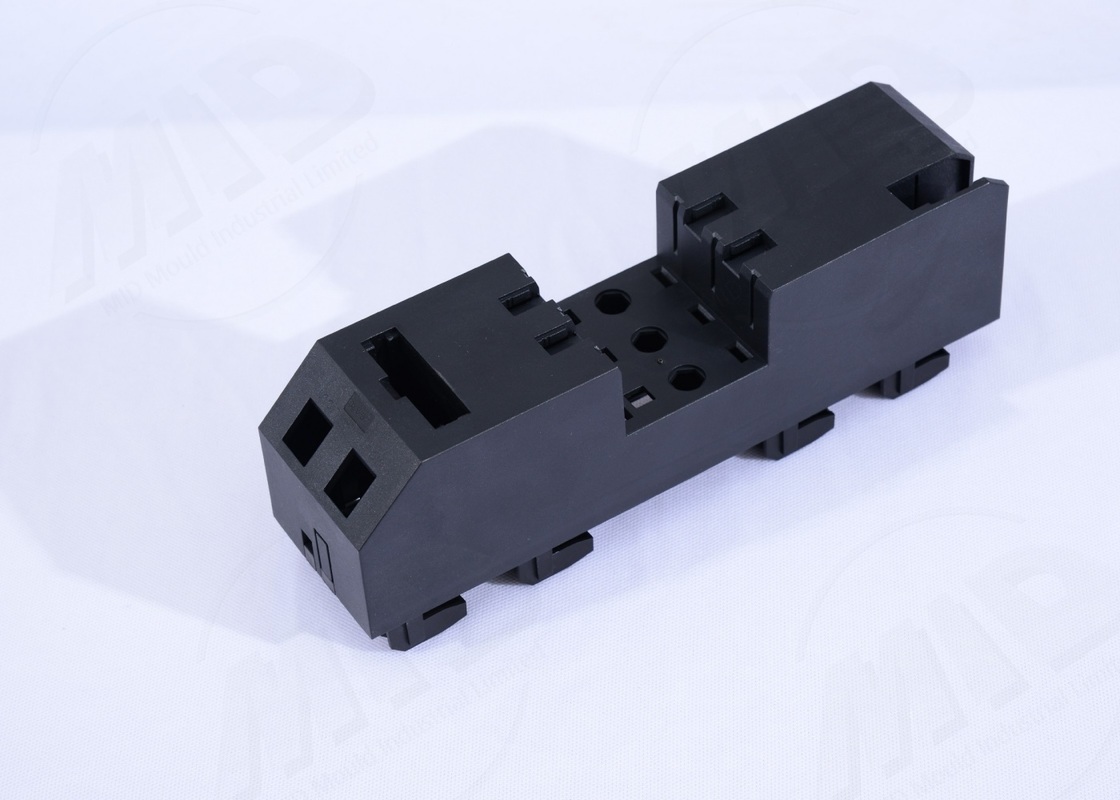

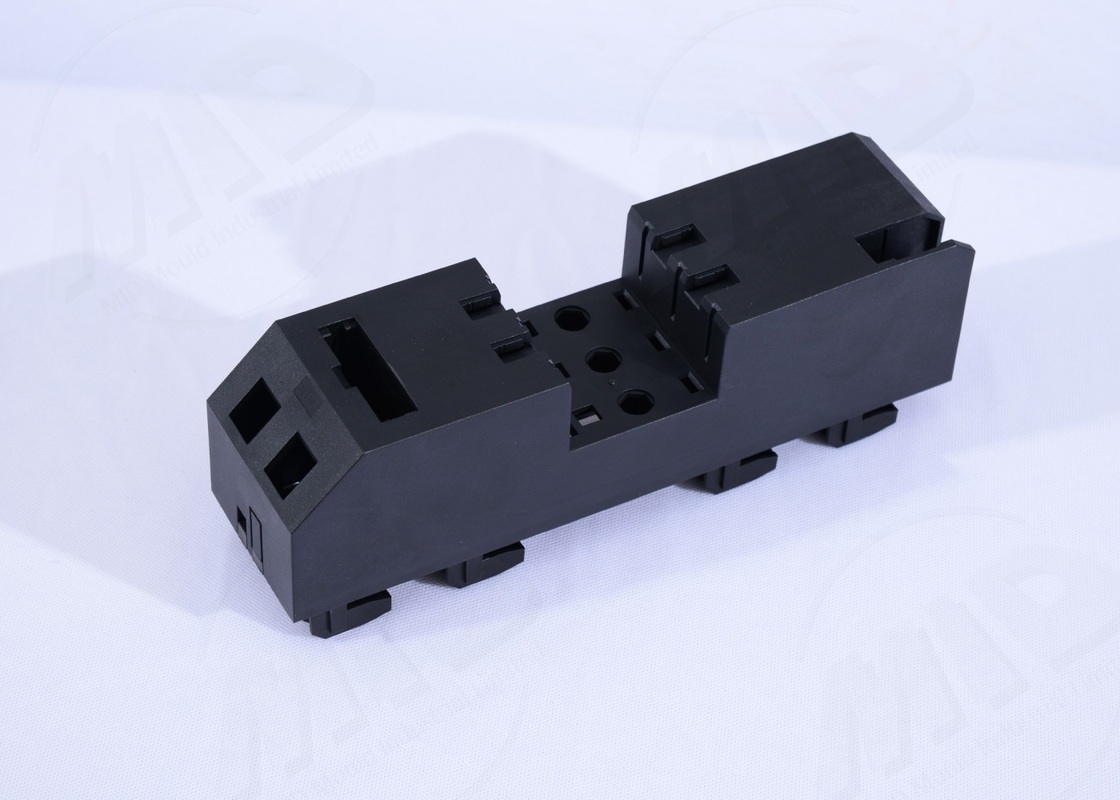

Custom Electronic Injection Molding SPD Plastic Mould Parts UL94-V0
This product utilizes precision injection molding to ensure the plastic enclosure possesses high insulation, strength, and dimensional stability. The specific process is as follows:
- Design Evaluation: Customer provides 3D drawings or samples → Structural Evaluation
- Mold Manufacturing: Steel Selection + CNC + EDM + Polishing + Mold Assembly
- Raw Material Preparation: Flame-retardant engineering plastics such as PC or reinforced PA
- Injection Molding: Temperature and pressure are controlled using a high-precision injection molding machine
- Mold Release and Inspection: Appearance and dimensional inspection is performed after automatic mold release
- Post-Processing: Coding, Laser Marking, Assembly Check (if required)
- Packaging and Shipping: Packed and shipped according to customer specifications
| Parameter Name | Detailed Description |
|---|---|
| Material Type | PC/ABS Alloy, PA66+GF, Fire Rating: UL94-V0 |
| Molding Process | Single-color Injection Molding |
| Mold Type | Hot runner or cold runner molds (as per customer specifications) |
| Mold lifespan | typically reaches 300,000-500,000 cycles |
| Dimensional tolerance | ±0.05mm |
| Exterior color | Black (customizable) |
| Surface finish | Matte finish (e.g., VDI standard) |
| Assembly method | For use with SPD module circuit boards |
| Applicable standards | IEC/EN 61643 or customer specifications |
| Mold delivery time | 15–35 working days for new molds, 5–10 days for mass production |
Application Scenarios:
- Home and industrial surge protection devices (SPDs)
- Distribution boxes, low-voltage switchgear, rail transit lightning protection systems
- Smart building weak current systems
Product Advantages:
- High insulation and flame retardancy: Made from UL94-V0 rated materials
- Precise molding, secure installation: Multi-hole design accommodates diverse terminal layouts
- Strong compatibility: Compatible with various SPD module specifications
- Excellent batch cost control: Mature injection molding platform, high cost-effectiveness
- Custom development support: Molds, logos, and structural dimensions can be customized upon request
Q1: Can you create a mold based on my 3D drawings?
A1: Yes, we support OEM/ODM services and can quickly evaluate and quote based on your 3D/2D drawings.
Q2: What is the minimum order quantity?
A2: There is no fixed MOQ for mold orders. The minimum order quantity for products is typically 500–1000 pieces, depending on the complexity of the structure.
Q3: Can the material be customized?
A3: Yes. We commonly use flame-retardant materials such as PC, PA, ABS, and PBT, and can recommend a suitable solution based on your specific application scenario.
Q4: Do you provide mold ownership?
A4: Yes. After full payment, the mold becomes yours and can be shipped or managed by us.
Q5: What are the quality inspection processes?
A5: Injection molded parts undergo dimensional inspection, functional fit testing, high-temperature resistance testing (if applicable), and appearance inspection.
- Experienced mold development team familiar with electronics industry standards
- Multi-cavity design available for efficient mass production
- Fast prototyping + engineering support + mold maintenance services
- 3D structural optimization suggestions and fast Design for Function (DFM) reports
