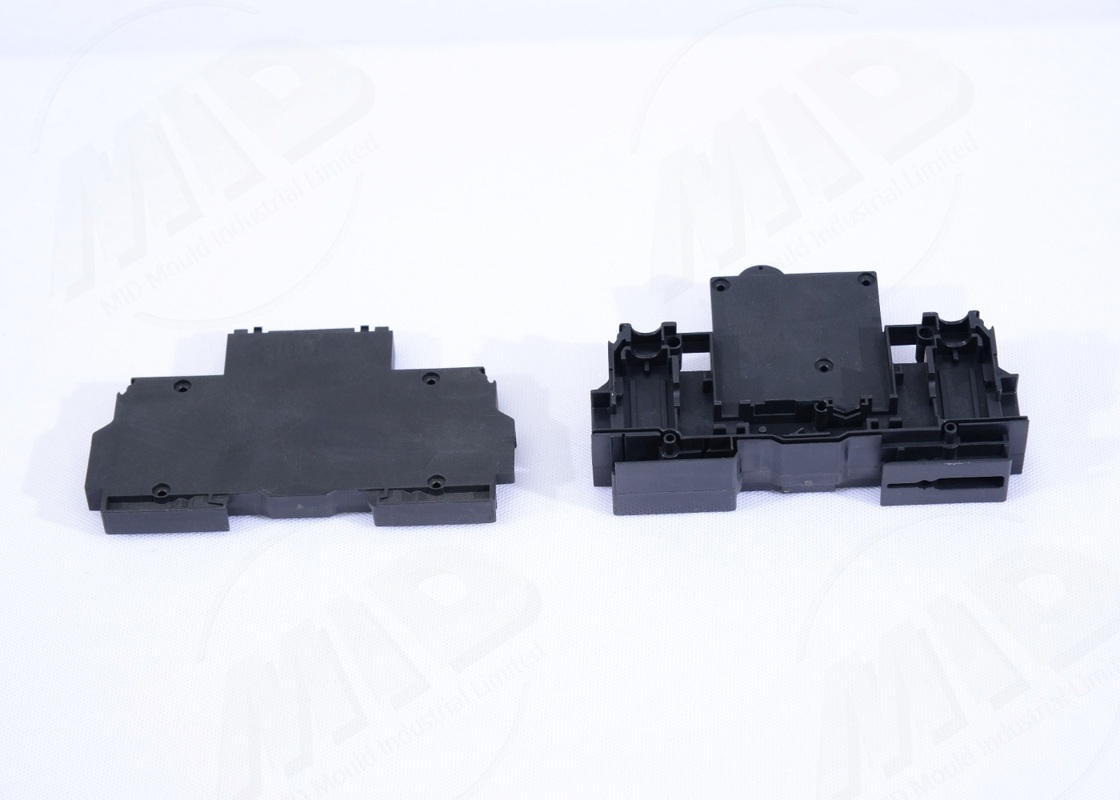

Electronic Injection Molding Precision Connectors PBT LCP Insulating Durable OEM
-
Highlight
PBT electronic injection molding connectors
,LCP insulating precision connectors
,durable OEM injection molding parts
-
Shaping ModePlastic Injection Mould,Silicone Mould,Medical Plastic Injection Molding
-
ProductHousehold Product,Household Appliance,Vehicle Mould,low Cost Injection Molding,Medical Plastic Products
-
Surface TreatmentPolishing,Painting,Texturing Or Polishing And So On,Smooth,Texturing
-
CavityMulti Cavity,Single/multi,Single/Family,as Request,32 Cavities
-
Mould MaterialP20/718/738/NAK80/S136,NAK80,P20,S136,718
-
Mould BaseLKM,HASCO,LKM Or HASCO And So On,or Mr.Mould Customed,5CrNiMo /60# Steel
-
Design SoftwareCAD,UG,Pro-E,CAXA Ect.,UG PROE CAD
-
RunnerHot Runner\ Cold Runner,Hot/cold
-
KeywordMould Maker,medical Mould,plastic Injection Syringe Mold
-
Place of OriginDongguan, China
-
Brand NameMID MOULD
-
CertificationISO9001, ROHS, UL (if applicable)
-
Minimum Order Quantity500–1000 pcs (adjustable depending on project)
-
PriceUSD $0.1–$3.5 per piece (depends on material, part size, and volume)
-
Packaging DetailsPlastic bag + carton box, or customized packaging
-
Delivery Time7–20 working days (faster for small batch)
-
Payment Terms50% deposit + balance before shipment
-
Supply AbilityUp to 50,000 pcs per day depending on mold cavitation and cycle time

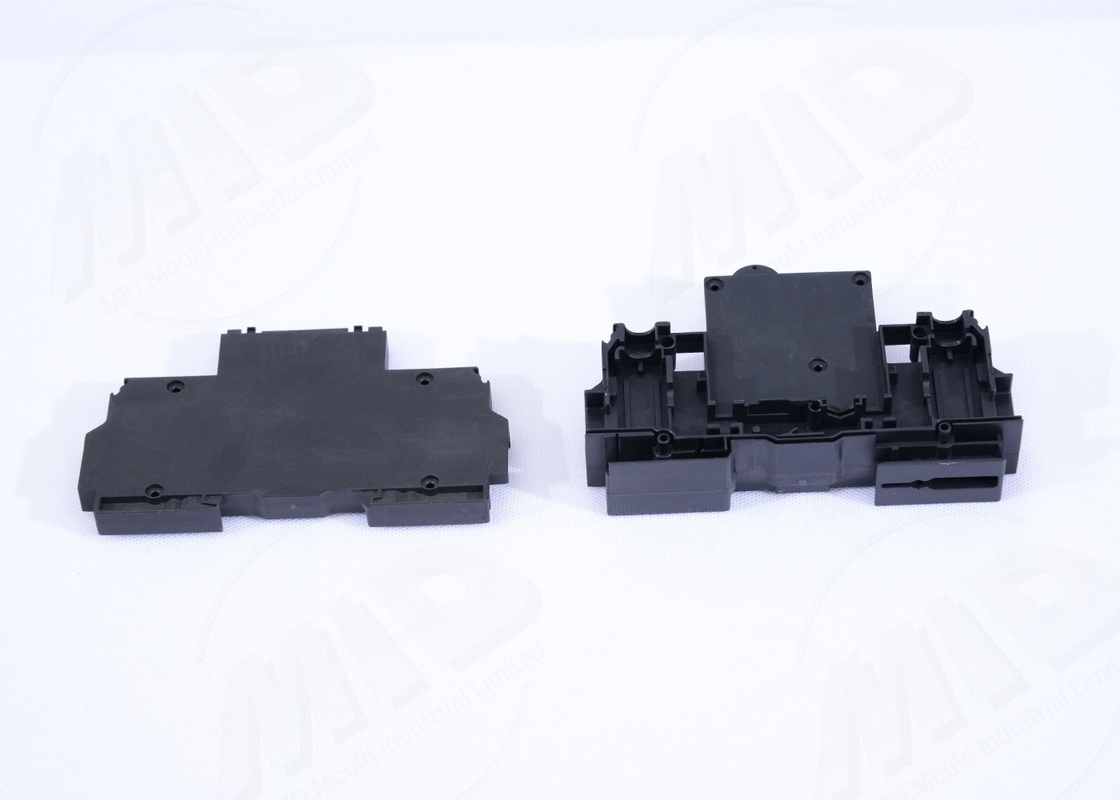

Electronic Injection Molding Precision Connectors PBT LCP Insulating Durable OEM
Electronic Injection Molding Precision Connectors PBT LCP Insulating Durable OEM
Electronic Connector Injection Molding Process
Electronic connector injection molding requires extremely high precision and durability. Materials such as PBT, LCP, and PA66+GF are used, utilizing high-speed injection molding and insert molding processes to ensure precise integration of the conductive terminals and plastic components.
Process Flow
- Raw Material Drying
- Precision Injection Molding of Housing/Insulator
- Insert Molded Metal Terminals (Optional)
- Automated Assembly and Inspection
- Packaging and Shipping
Product Parameters
| Parameter | Value Range/Description |
|---|---|
| Material | PBT, PA66+GF, LCP |
| Accuracy | ±0.02 mm |
| Temperature Range | -40°C to 150°C |
| Features | High Strength, Wear Resistance, Insulation |
| Plug-in Life | ≥ 5,000 Cycles |
| Mold Life | 800,000–1,000,000 Cycles |
| Molding Cycle | 8–20 Seconds |
| Dimensions | Small Precision Parts |
| Applications | Power Interface, Signal Interface |
Uses and Advantages
Applicable to connectors for power supply, signal transmission, communications equipment, etc.
Key Advantages
- High Precision, Ensures Reliable Contact
- Flame Retardant, Excellent Insulation
- Long Plug-in Life
- Suitable for Complex Insert Structures
- RoHS and REACH Compliant
Frequently Asked Questions
Q1: Is the product compatible with different standard interfaces?
A1: Yes, we support a variety of Luer and DIN connectors.
Q2: Can we use glass fiber reinforced materials?
A2: Yes, it improves strength and heat resistance.
Q3: Is dual-shot molding supported?
A3: Yes, depending on functional requirements.
Q4: What is the service life?
A4: ≥5000 plugging and unplugging cycles.
Q5: Can the mold be used for extended periods?
A5: Over a million times.
Customized Mold Customization
We support customized development of terminal inserts, insulator shape optimization, interface size adjustment, and unique logos to meet the diverse connector needs of different electronics manufacturers.
