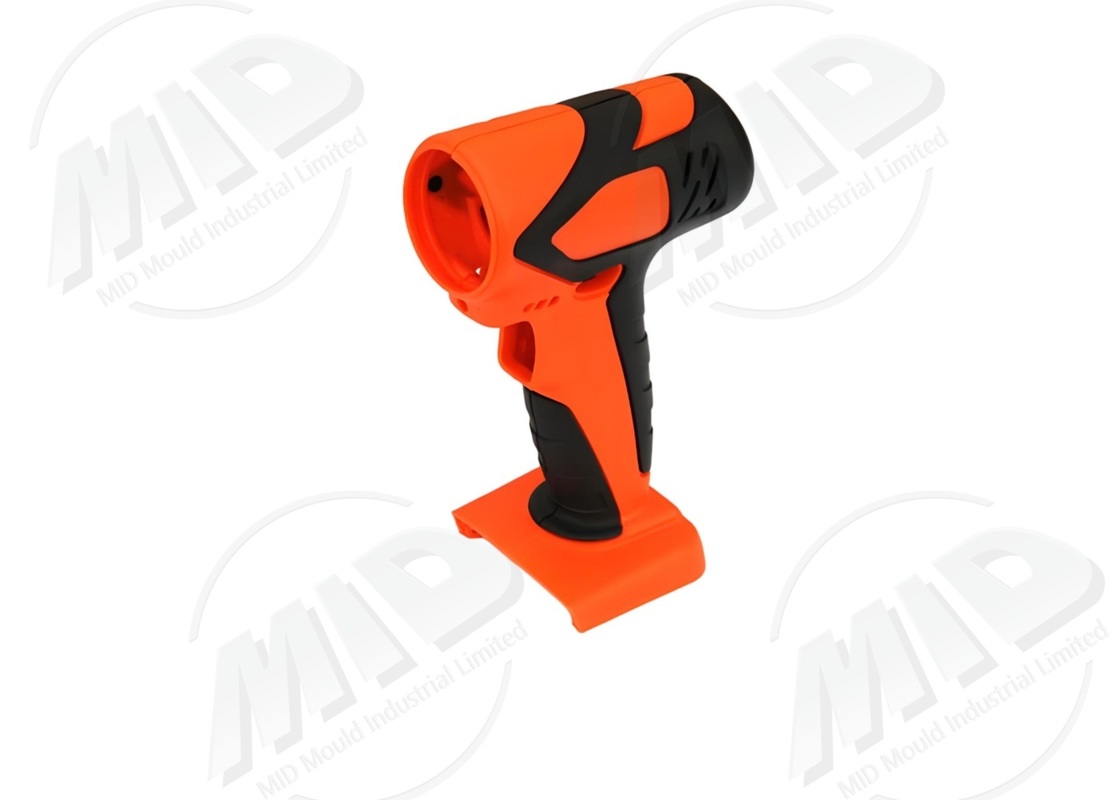

600K Cycles 2K Molds High Accuracy Double Injection Mold For Dual Material Overmolding
-
Highlight
600K Cycles 2K Molds
,2K Molds High Accuracy
,High Accuracy Double Injection Mold
-
Product Name2K Molds
-
Shaping ModePlastic Injection Mould,Plastic Injection Molding,Compression Mould
-
MaterialSTEEL,ps,PP,Steel And Metal,aluminum
-
ProductVehicle Mould,Household Appliance,plastic Injection Mold,injection Machine Mold,Household Product
-
Mould Life250000-300000shots,200~1 M Available,300,000shots,000 Times
-
RunnerHot Runner\ Cold Runner,cold/hot
-
CavityMulti Cavity,as Per Client's Requirement
-
Product MaterialPlastic,Steel,PP,ABS,PS
-
Mold MaterialNAK80,H13,50#,P20,45#
-
Design SoftwareCAD,CAD/ProE/UG/SOLIDWORKS,CAD UG Moldflow,Solidworks,PROE
-
Mould MaterialP20/718/738/NAK80/S136,P20/718/2738/H13/S136/NAK80,718,SKD61 Etc,H13
-
ApplicationHome Appliance,Industrial,Automotive,various Range,Machine
-
CertificationISO9001,FDA,ISO13485
-
Mould BaseNon-Standard Plastic Injection Mould,World Standard,European Standard,LKM.HASCO,HASCO Standard
-
Surface TreatmentSandblasted,Texture,anodizing Black,clear Painting,Polishing
-
SizeAs Samples/drawings,customized Accepted,Customized Size
-
Mold RunnerHot&Cold Runner You Can Choose,Hot Runner And Code Runner
-
Mold Life000 To 1,500000 Shots,000 Shots,100000-1000000,50
-
Plastic MaterialPeek,ABS/PP/PS/PE/PVC/PA6/PA66..et,MC Nylon,Derlin,UHMW-PE
-
Place of OriginDongguan, China
-
Brand NameMID MOULD
-
CertificationISO9001:2015 Certificate, export standard compliant
-
Minimum Order Quantity1 set
-
PriceUSD $3,000–$50,000 per set (depending on complexity)
-
Packaging DetailsWooden case + anti-rust oil + protective film + packing list
-
Delivery Time25–45 working days (longer for complex tools)
-
Payment Terms50% deposit + 30% upon first sample + 20% after sample approval or before final mold shipment
-
Supply Ability20–35 sets per month, depending on structure
600K Cycles 2K Molds High Accuracy Double Injection Mold For Dual Material Overmolding
2K Injection Molds For Dual Material Overmolding 600K Cycles
Precision 2K Injection Molds Dual Material Tooling
Dual-color injection molding utilizes a single mold to inject two materials or colors, enhancing both appearance and functionality. This process effectively eliminates traditional secondary assembly or painting, reducing production steps and costs.
Process Flow
- Determine the two-color area and mold structure
- Mold flow analysis ensures melt flow and bonding
- High-speed CNC and spark machining for cavity processing
- Mold assembly with a rotary table/slide switching device
- Trial mold adjustments ensure stable two-color molding
Product Specifications
| Item | Parameter | Description |
|---|---|---|
| Mold Type | Two-color injection mold | |
| Mold Material | H13 718H NAK80 | |
| Number of cavities | 2–10 cavities | |
| Mold Life | 600,000–1.2 million cycles | |
| Surface Treatment | Polishing, Sandblasting, Chrome Plating | |
| Applicable Materials | ABS PC PA + TPU | |
| Molding Method | Rotary mold with dual slide switching | |
| Product Accuracy | ±0.02mm | |
| Cooling System | Parallel water cooling design | |
| Product Cycle | 60–90 days |
Product Advantages
- Strong dual-material bonding
- Appearance and function are molded in one go
- High accuracy ±0.02mm
- Reduces assembly and post-processing costs
FAQ
Q1: Can the mold achieve a transparent + colored effect?
A1: Yes, different material combinations are supported.
Q2: What is the mold lifespan?
A2: 600,000–1.2 million molds.
Q3: What is the production cycle?
A3: Typically 60–90 days.
Q4: Is the mold easy to maintain?
A4: Yes, we use a modular design.
Q5: Does it support automated production?
A5: Yes, with robotic arm support.
Customized Services
We can customize the dual-color area, mold structure, cavity number, and cooling design to meet specific functional and aesthetic requirements.
