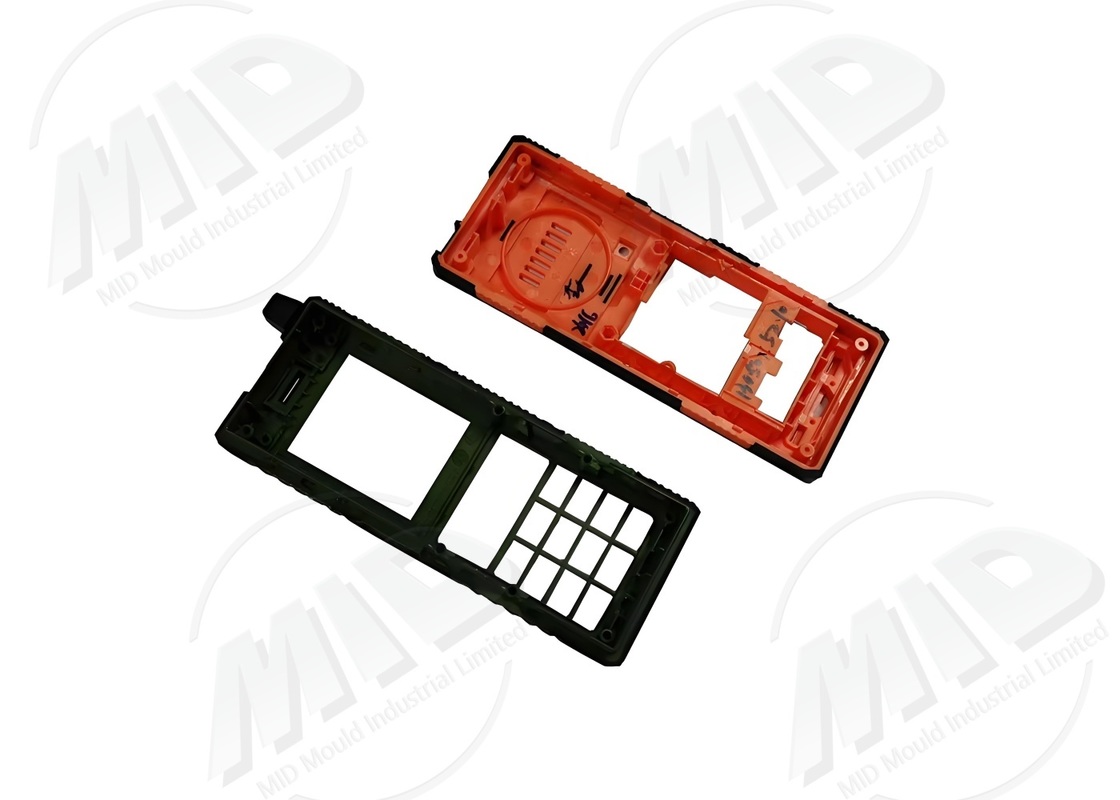

H13 Steel 2K Mould 650K Cycles Double Injection Mould ±0.02mm Precision
-
Highlight
H13 Steel 2K Mould
,650K Cycles Double Injection Mould
,Precision Double Injection Mould
-
Product Name2K Mould
-
Shaping ModePlastic Injection Mould,Plastic Injection Molding,Compression Mould
-
MaterialSTEEL,ps,PP,Steel And Metal,aluminum
-
ProductVehicle Mould,Household Appliance,plastic Injection Mold,injection Machine Mold,Household Product
-
Mould Life250000-300000shots,200~1 M Available,300,000shots,000 Times
-
RunnerHot Runner\ Cold Runner,cold/hot
-
CavityMulti Cavity,as Per Client's Requirement
-
Product MaterialPlastic,Steel,PP,ABS,PS
-
Mold MaterialNAK80,H13,50#,P20,45#
-
Design SoftwareCAD,CAD/ProE/UG/SOLIDWORKS,CAD UG Moldflow,Solidworks,PROE
-
Mould MaterialP20/718/738/NAK80/S136,P20/718/2738/H13/S136/NAK80,718,SKD61 Etc,H13
-
ApplicationHome Appliance,Industrial,Automotive,various Range,Machine
-
CertificationISO9001,FDA,ISO13485
-
Mould BaseNon-Standard Plastic Injection Mould,World Standard,European Standard,LKM.HASCO,HASCO Standard
-
Surface TreatmentSandblasted,Texture,anodizing Black,clear Painting,Polishing
-
SizeAs Samples/drawings,customized Accepted,Customized Size
-
Mold RunnerHot&Cold Runner You Can Choose,Hot Runner And Code Runner
-
Mold Life000 To 1,500000 Shots,000 Shots,100000-1000000,50
-
Plastic MaterialPeek,ABS/PP/PS/PE/PVC/PA6/PA66..et,MC Nylon,Derlin,UHMW-PE
-
Place of OriginDongguan, China
-
Brand NameMID MOULD
-
CertificationISO9001:2015 Certificate, export standard compliant
-
Minimum Order Quantity1 set
-
PriceUSD $3,000–$50,000 per set (depending on complexity)
-
Packaging DetailsWooden case + anti-rust oil + protective film + packing list
-
Delivery Time25–45 working days (longer for complex tools)
-
Payment Terms50% deposit + 30% upon first sample + 20% after sample approval or before final mold shipment
-
Supply Ability20–35 sets per month, depending on structure
H13 Steel 2K Mould 650K Cycles Double Injection Mould ±0.02mm Precision
2K Injection Mold H13 Steel 650K Cycles ±0.02mm Precision
Product Process
Two-shot injection molds combine two materials or colors through a double-shot molding process, enhancing the product's functionality and appearance. This process significantly reduces subsequent painting and assembly steps, reducing labor and production costs.
Process Flow
- Design of the two-color area and mold parting surface
- CAE analysis ensures material bonding strength
- CNC precision machining and EDM finishing
- Assembly of the rotary mold/slide switch mechanism
- Trial mold to verify the two-color bonding effect
Product Specifications
| Item | Parameter Description |
|---|---|
| Mold Type | Two-color injection mold |
| Mold Material | H13 718H S136 |
| Number of cavities | 2–10 cavities |
| Mold Life | 650,000–1.2 million cycles |
| Surface Treatment | Mirror polishing, sandblasting |
| Applicable Materials | PC ABS PA + TPE TPU |
| Molding Method | Rotary mold or slide shifting |
| Product Accuracy | ±0.02mm |
| Cooling System | Multi-circuit cooling design |
| Product Cycle Time | 60–85 days |
Product Advantages
- Secure two-color bonding, beautiful and durable
- Eliminates subsequent painting and assembly
- High mold accuracy ±0.02mm
- Long service life
FAQ
Q1: Can a combination of transparent and opaque be achieved? A1: Yes, we support different material combinations.
Q2: Can the mold meet high-precision requirements? A2: Yes, with an accuracy of ±0.02mm.
Q3: What is the mold lifespan? A3: 650,000–1.2 million molds.
Q4: What is the production cycle? A4: Typically 60–85 days.
Q5: Can you provide fast proofing? A5: Yes, we can provide sample confirmation.
Customized Services
We can customize the two-color distribution, mold structure, cooling system, and surface treatment to meet diverse needs.
