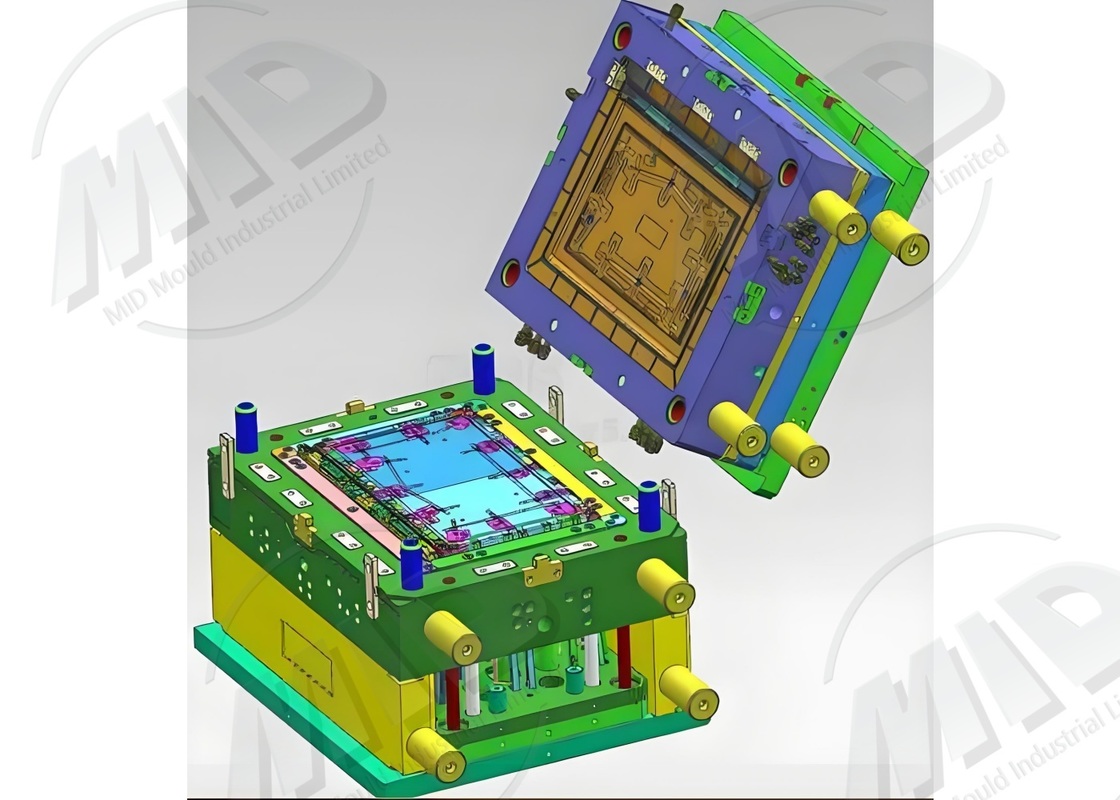

Stack Injection Mold 2*4-2*16 Cavities for Packaging Medical

Stack Injection Mold 2*4-2*16 Cavities for Packaging Medical

Products - Plastic Injection Molds
  • Highlight

    2*4 cavity plastic injection mold

    ,

    medical packaging injection mold

    ,

    stack injection mold with warranty

  • Product Material
    Plastic,Steel,PP,ABS,PS
  • Shaping Mode
    Plastic Injection Mould,Plastic Injection Molding,Compression Mould
  • Product
    Vehicle Mould,Household Appliance,plastic Injection Mold,injection Machine Mold,Household Product
  • Material
    STEEL,ps,PP,Steel And Metal,aluminum
  • Mould Life
    250000-300000shots,200~1 M Available,300,000shots,000 Times
  • Product Name
    Plastic Injection Mould,injection Machine Mold,Shanghai Factory Cheap Plastic Component Injection Mold,High Quality Virgin Raw Material Custom Plastic Injection Mold Product,Gear Parts
  • Runner
    Hot Runner\ Cold Runner,cold/hot
  • Cavity
    Multi Cavity,as Per Client's Requirement
  • Mold Material
    NAK80,H13,50#,P20,45#
  • Design Software
    CAD,CAD/ProE/UG/SOLIDWORKS,CAD UG Moldflow,Solidworks,PROE
  • Mould Material
    P20/718/738/NAK80/S136,P20/718/2738/H13/S136/NAK80,718,SKD61 Etc,H13
  • Application
    Home Appliance,Industrial,Automotive,various Range,Machine
  • Certification
    ISO9001,FDA,ISO13485
  • Mould Base
    Non-Standard Plastic Injection Mould,World Standard,European Standard,LKM.HASCO,HASCO Standard
  • Surface Treatment
    Sandblasted,Texture,anodizing Black,clear Painting,Polishing
  • Mold Life
    000 To 1,500000 Shots,000 Shots,100000-1000000,50
  • Mold Runner
    Hot&Cold Runner You Can Choose,Hot Runner And Code Runner
  • Plastic Material
    Peek,ABS/PP/PS/PE/PVC/PA6/PA66..et,MC Nylon,Derlin,UHMW-PE
  • Size
    As Samples/drawings,customized Accepted,Customized Size
  • Place of Origin
    Dongguan, China
  • Brand Name
    MID MOULD
  • Certification
    ISO9001:2015 Certificate, export standard compliant
  • Minimum Order Quantity
    1 set
  • Price
    USD $3,000–$50,000 per set (depending on complexity)
  • Packaging Details
    Wooden case + anti-rust oil + protective film + packing list
  • Delivery Time
    25–45 working days (longer for complex tools)
  • Payment Terms
    50% deposit + 30% upon first sample + 20% after sample approval or before final mold shipment
  • Supply Ability
    20–35 sets per month, depending on structure

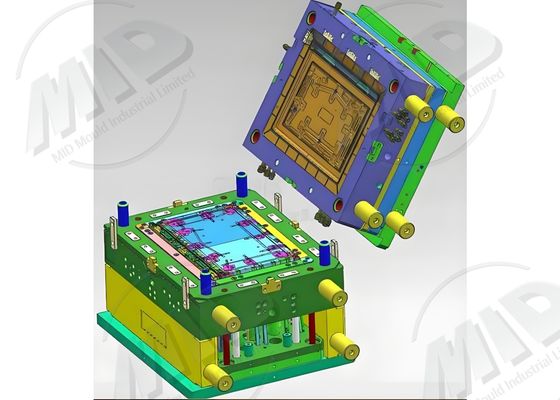

Stack Injection Mold 2*4-2*16 Cavities for Packaging Medical

  • Stack Injection Mold 2*4-2*16 Cavities for Packaging Medical
Get Price Contact Now
High Efficiency Stack Injection Mold
Double Production Capacity for Packaging and Medical Products
Product Description
Stack molds utilize two or multiple cavities arranged vertically to simultaneously mold multiple sets of parts within the same injection cycle. This innovative design significantly increases production capacity while reducing manufacturing costs, making it ideal for high-volume applications in packaging, medical, and consumer goods industries.
Process Flow
  1. Mold Design: Custom double-layer or multi-layer cavity structure based on product requirements
  2. Material Selection: High-strength steel for optimal mold stability
  3. Precision Machining: Multi-layer cavities manufactured using CNC and EDM technology
  4. Mold Assembly: Installation of intermediate rotating mechanism and cooling system
  5. Mold Trial & Debugging: Verification of cavity balance and injection molding quality
Product Specifications
Item Parameter Description
Mold Type Stack Injection Mold
Mold Material H13 S136
Cavities 2*4–2*16
Surface Treatment Polishing, Nitriding, Chrome Plating
Applicable Materials PP, PS, PE, ABS
Mold Life 800,000–1.5 million cycles
Injection Molding Machine Capacity 300–1200 tons
Product Accuracy ±0.01mm
Cooling System Dual-Channel Water Cooling
Lead Time 50–70 days
Product Applications
Ideal for high-volume production of bottle caps, food packaging containers, medical consumables, and disposable products.
Product Advantages
  • Doubles single-cycle output for improved production efficiency
  • Reduces manufacturing costs and energy consumption
  • High structural stability with extended service life
  • Optimized for automated large-scale production environments
Frequently Asked Questions
Q: Are stack molds more expensive than standard molds?
A: While the initial investment is higher, the long-term productivity advantages and cost savings make stack molds more economical for high-volume production.
Q: What industries are stack molds suitable for?
A: Primarily used in packaging, medical device manufacturing, and consumer goods production where high-volume output is required.
Q: Does it require a special injection molding machine?
A: Yes, typically requires a machine with higher clamping force capacity (300-1200 tons) to accommodate the stack mold configuration.
Q: What is the lifespan of a stack mold?
A: Designed for 800,000 to 1.5 million cycles. Proper maintenance can extend operational life beyond these estimates.
Customized Service
We offer complete customization including number of stack layers, gating methods, and automation interfaces to meet your specific production requirements.
