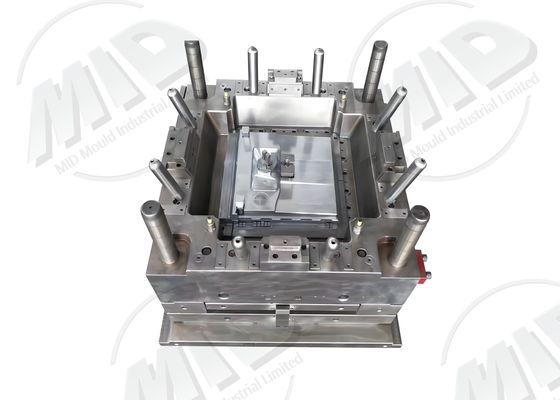

High Precision Micro Injection Mold Customized Injection Mould Tooling For Small Parts 0.5-50mm
-
Highlight
High Precision Micro Injection Mold
,Micro Injection Mold Customized
,Customized Injection Mould Tooling
-
Product NameMicro Injection Mold
-
Product MaterialPlastic,Steel,PP,ABS,PS
-
Shaping ModePlastic Injection Mould,Plastic Injection Molding,Compression Mould
-
ProductVehicle Mould,Household Appliance,plastic Injection Mold,injection Machine Mold,Household Product
-
MaterialSTEEL,ps,PP,Steel And Metal,aluminum
-
Mould Life250000-300000shots,200~1 M Available,300,000shots,000 Times
-
RunnerHot Runner\ Cold Runner,cold/hot
-
CavityMulti Cavity,as Per Client's Requirement
-
Mold MaterialNAK80,H13,50#,P20,45#
-
Design SoftwareCAD,CAD/ProE/UG/SOLIDWORKS,CAD UG Moldflow,Solidworks,PROE
-
Mould MaterialP20/718/738/NAK80/S136,P20/718/2738/H13/S136/NAK80,718,SKD61 Etc,H13
-
ApplicationHome Appliance,Industrial,Automotive,various Range,Machine
-
CertificationISO9001,FDA,ISO13485
-
Mould BaseNon-Standard Plastic Injection Mould,World Standard,European Standard,LKM.HASCO,HASCO Standard
-
Surface TreatmentSandblasted,Texture,anodizing Black,clear Painting,Polishing
-
Mold Life000 To 1,500000 Shots,000 Shots,100000-1000000,50
-
Mold RunnerHot&Cold Runner You Can Choose,Hot Runner And Code Runner
-
Plastic MaterialPeek,ABS/PP/PS/PE/PVC/PA6/PA66..et,MC Nylon,Derlin,UHMW-PE
-
SizeAs Samples/drawings,customized Accepted,Customized Size
-
Place of OriginDongguan, China
-
Brand NameMID MOULD
-
CertificationISO9001:2015 Certificate, export standard compliant
-
Minimum Order Quantity1 set
-
PriceUSD $3,000–$50,000 per set (depending on complexity)
-
Packaging DetailsWooden case + anti-rust oil + protective film + packing list
-
Delivery Time25–45 working days (longer for complex tools)
-
Payment Terms50% deposit + 30% upon first sample + 20% after sample approval or before final mold shipment
-
Supply Ability20–35 sets per month, depending on structure
High Precision Micro Injection Mold Customized Injection Mould Tooling For Small Parts 0.5-50mm
Micro Plastic Injection Molds For Small Parts 0.5-50mm
Micro Injection Molds
Micro injection molds are specifically designed for molding ultra-small parts. The mold cavity is created through high-precision machining (such as micro-EDM and ultra-precision milling), ensuring dimensional tolerances within micron levels.
Product Parameters
| Parameter Name | Parameter Description |
|---|---|
| Mold Material | S136, Tungsten Steel |
| Number of Cavities | 1–16 |
| Product Size Range | 0.5mm–50mm |
| Injection Molding Machine Tonnage | 15T–200T |
| Cooling Method | Microcirculation Cooling |
| Injection Pressure | 150–2000bar |
| Service Life | 50,000–500,000 cycles |
| Surface Treatment | Ultra-fine Polishing, Chrome Plating |
| Mold Type | Micro Mold |
| Applicable Materials | POM, PA, LCP |
Applications
- Medical Micro Parts
- Precision Electronic Connectors
- Micro Gears and Bearings
- Optical Components
Advantages
- Micron-level Machining Accuracy
- Suitable for Extremely Small Parts
- High Repeatability, Extremely Small Errors
- Long Service Life
FAQ
Q: What Micro Parts Can Be Produced?
A: Electronic Connectors, Micro Gears, Medical Device Components, etc.
Q: Will the Mold Life Be Short?
A: High-hardness steel and special treatment ensure reliable service life.
Customized Molds
We can design high-precision mold cavities for various micro-parts, along with customized gates and cooling systems.
