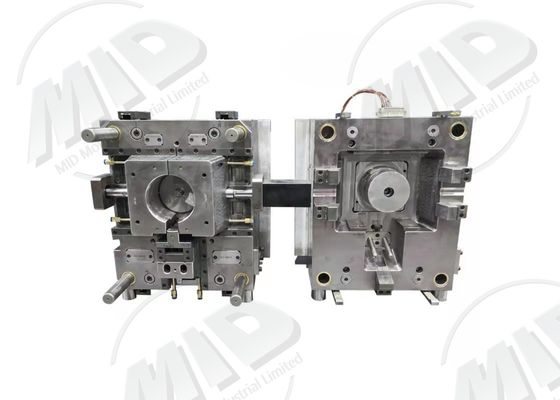

Precision Hot Runner Moulds 2 Cavity - 48 Cavity Injection Molding Tooling For ABS PP PA PC
-
Highlight
Precision Hot Runner Moulds
,2 Cavity Injection Molding Tooling
,48 Cavity Injection Molding Tooling
-
Product NameHot Runner Moulds
-
Product MaterialPlastic,Steel,PP,ABS,PS
-
Shaping ModePlastic Injection Mould,Plastic Injection Molding,Compression Mould
-
ProductVehicle Mould,Household Appliance,plastic Injection Mold,injection Machine Mold,Household Product
-
MaterialSTEEL,ps,PP,Steel And Metal,aluminum
-
Mould Life250000-300000shots,200~1 M Available,300,000shots,000 Times
-
RunnerHot Runner\ Cold Runner,cold/hot
-
CavityMulti Cavity,as Per Client's Requirement
-
Mold MaterialNAK80,H13,50#,P20,45#
-
Design SoftwareCAD,CAD/ProE/UG/SOLIDWORKS,CAD UG Moldflow,Solidworks,PROE
-
Mould MaterialP20/718/738/NAK80/S136,P20/718/2738/H13/S136/NAK80,718,SKD61 Etc,H13
-
ApplicationHome Appliance,Industrial,Automotive,various Range,Machine
-
CertificationISO9001,FDA,ISO13485
-
Mould BaseNon-Standard Plastic Injection Mould,World Standard,European Standard,LKM.HASCO,HASCO Standard
-
Surface TreatmentSandblasted,Texture,anodizing Black,clear Painting,Polishing
-
Mold Life000 To 1,500000 Shots,000 Shots,100000-1000000,50
-
Mold RunnerHot&Cold Runner You Can Choose,Hot Runner And Code Runner
-
Plastic MaterialPeek,ABS/PP/PS/PE/PVC/PA6/PA66..et,MC Nylon,Derlin,UHMW-PE
-
SizeAs Samples/drawings,customized Accepted,Customized Size
-
Place of OriginDongguan, China
-
Brand NameMID MOULD
-
CertificationISO9001:2015 Certificate, export standard compliant
-
Minimum Order Quantity1 set
-
PriceUSD $3,000–$50,000 per set (depending on complexity)
-
Packaging DetailsWooden case + anti-rust oil + protective film + packing list
-
Delivery Time25–45 working days (longer for complex tools)
-
Payment Terms50% deposit + 30% upon first sample + 20% after sample approval or before final mold shipment
-
Supply Ability20–35 sets per month, depending on structure
Precision Hot Runner Moulds 2 Cavity - 48 Cavity Injection Molding Tooling For ABS PP PA PC
Hot Runner Plastic Injection Mold 2-48 Cavity For ABS PP PA PC
Hot Runner Injection Mold Process
Hot runner molds use a heating system to prevent molten plastic from solidifying in the runners, enabling continuous and stable injection. This process reduces cold slug generation, improves production efficiency, provides material savings, and is suitable for high-volume precision part molding.
Product Parameters
| Parameter Name | Parameter Description |
|---|---|
| Mold Material | H13, S136, 738 Steel |
| Number of Cavities | 2–48 |
| Product Size Range | 5mm–400mm |
| Injection Molding Machine Tonnage | 60T–1500T |
| Cooling Method | Water-cooled circulation |
| Injection Pressure | 80–1600bar |
| Service Life | 100,000–1,000,000 cycles |
| Surface Treatment | Polishing, nitriding |
| Mold Type | Hot runner mold |
| Applicable Materials | ABS, PP, PA, PC |
Applications
- Plastic parts for daily necessities
- Small automotive accessories
- Medical syringe housings
- Plastic parts for consumer electronics
Advantages
- Material savings and reduced waste
- Uniform injection and high product consistency
- Suitable for high-volume continuous production
- Long mold life and easy maintenance
FAQ
Q: Is it more expensive than a cold runner mold?
A: While the initial cost is higher, production efficiency is higher and the overall cost is lower.
Q: Is it suitable for complex parts?
A: Yes, we can optimize the runners to ensure filling.
Customized Mold Customization
We support multi-point hot runner design, allowing customers to optimize gate location and quantity for optimal product quality.
