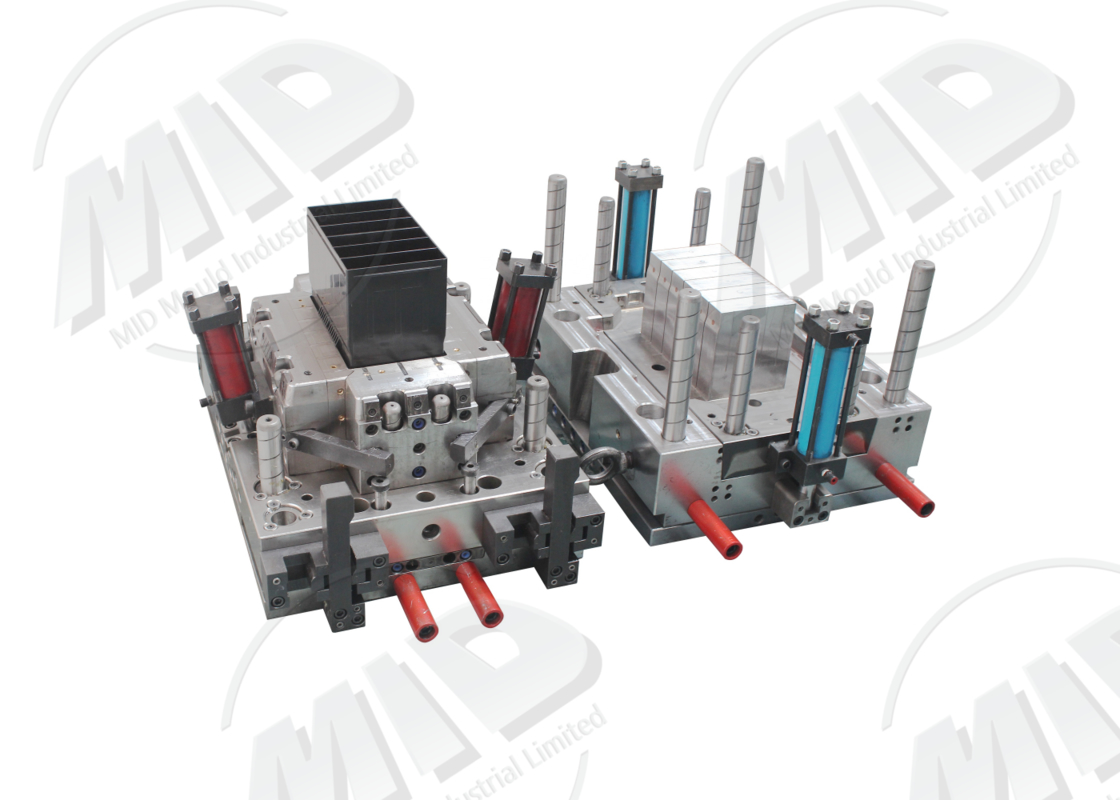

Multi Cavity Design Short Cycle Time Cost Effective Manufacturing

Multi Cavity Design Short Cycle Time Cost Effective Manufacturing

Products - Plastic Injection Molds
  • Highlight

    multi-cavity plastic injection mold

    ,

    plastic injection mold with warranty

    ,

    high durability plastic injection mold

  • Product Material
    Plastic,Steel,PP,ABS,PS
  • Shaping Mode
    Plastic Injection Mould,Plastic Injection Molding,Compression Mould
  • Product
    Vehicle Mould,Household Appliance,plastic Injection Mold,injection Machine Mold,Household Product
  • Material
    STEEL,ps,PP,Steel And Metal,aluminum
  • Mould Life
    250000-300000shots,200~1 M Available,300,000shots,000 Times
  • Product Name
    Plastic Injection Mould,injection Machine Mold,Shanghai Factory Cheap Plastic Component Injection Mold,High Quality Virgin Raw Material Custom Plastic Injection Mold Product,Gear Parts
  • Runner
    Hot Runner\ Cold Runner,cold/hot
  • Cavity
    Multi Cavity,as Per Client's Requirement
  • Mold Material
    NAK80,H13,50#,P20,45#
  • Design Software
    CAD,CAD/ProE/UG/SOLIDWORKS,CAD UG Moldflow,Solidworks,PROE
  • Mould Material
    P20/718/738/NAK80/S136,P20/718/2738/H13/S136/NAK80,718,SKD61 Etc,H13
  • Application
    Home Appliance,Industrial,Automotive,various Range,Machine
  • Certification
    ISO9001,FDA,ISO13485
  • Mould Base
    Non-Standard Plastic Injection Mould,World Standard,European Standard,LKM.HASCO,HASCO Standard
  • Surface Treatment
    Sandblasted,Texture,anodizing Black,clear Painting,Polishing
  • Mold Life
    000 To 1,500000 Shots,000 Shots,100000-1000000,50
  • Mold Runner
    Hot&Cold Runner You Can Choose,Hot Runner And Code Runner
  • Plastic Material
    Peek,ABS/PP/PS/PE/PVC/PA6/PA66..et,MC Nylon,Derlin,UHMW-PE
  • Size
    As Samples/drawings,customized Accepted,Customized Size
  • Place of Origin
    Dongguan, China
  • Brand Name
    MID MOULD
  • Certification
    ISO9001:2015 Certificate, export standard compliant
  • Minimum Order Quantity
    1 set
  • Price
    USD $3,000–$50,000 per set (depending on complexity)
  • Packaging Details
    Wooden case + anti-rust oil + protective film + packing list
  • Delivery Time
    25–45 working days (longer for complex tools)
  • Payment Terms
    50% deposit + 30% upon first sample + 20% after sample approval or before final mold shipment
  • Supply Ability
    20–35 sets per month, depending on structure

Multi Cavity Design Short Cycle Time Cost Effective Manufacturing

  • Multi Cavity Design Short Cycle Time Cost Effective Manufacturing
Get Price Contact Now
High Quality Plastic Injection Moulds Multi Cavity Design Short Cycle Time Cost Effective Manufacturing
Versatile mold solutions tailored to diverse plastic applications
Product Process Description

Plastic injection molds are essential tools for modern industrial mass production. They rely on high-temperature, high-pressure injection to fill the mold cavity with molten plastic, which is then cooled and molded into various parts. This process is suitable for complex structural products and features high efficiency and precision.

Process Flow
  • Preliminary Communication: Develop a mold structure and material selection plan based on customer needs and production targets.
  • Mold Processing: Mold components are manufactured using CNC high-speed milling and wire cutting.
  • Heat Treatment: Improve mold hardness and wear resistance, ensuring long life.
  • Mold Trial: Check the mold gate, cooling, and venting conditions, and make timely corrections.
  • Mass Production Injection: Molten plastic is injected into the mold cavity, cooled, and then demolded to produce the final product.
Product Specifications
Parameter Item Technical Specifications
Mold Steel P20, 718H, S136, 2738
Mold Life 300,000 - 1.2 Million Molds
Moldable Materials ABS, PP, PA66, PC, PMMA
Cavities Single/Multi-cavity (Customizable)
Cooling Method Water Cooling System, Local Oil Cooling
Surface Treatment Mirror Polishing, Sandblasting, Nitriding, Electroplating
Molding Cycle 15 - 70 Seconds
Product Size Range 1cm - 120cm
Delivery Time 25 - 50 Days
Service Support OEM/ODM Custom Development
Product Applications

Widely used in the production of automotive interiors, office equipment housings, electronic components, medical consumables, and daily necessities.

Product Advantages
  • High mold precision, suitable for complex parts
  • Using imported steel, wear-resistant and corrosion-resistant
  • Short molding cycle and high production efficiency
  • The number of cavities can be customized to meet customer needs
  • The mold is easy to maintain and has a longer service life
Frequently Asked Questions (FAQs)
Q1: What is the mold delivery time?
A1: Generally 25-50 days, depending on the complexity of the mold.
Q2: Can you provide a mold design plan?
A2: Yes, we offer free Design for Manufacturing (DFM) analysis.
Q3: Is the mold exportable?
A3: We meet international standards and can export globally.
Q4: How do you ensure mold accuracy?
A4: We use high-precision processing equipment and testing instruments for full quality control.
Customized Mold Services
  • We provide a full service from design, manufacturing, to production
  • We can customize multi-cavity molds, two-color molds, and hot runner molds
  • We offer fast prototyping to shorten development cycles
  • We provide after-sales maintenance and long-term technical support
