Industrial Injection Molding Fluid Nozzle Connector Plastic Elbow Fitting OEM
-
Highlight
Industrial injection molding plastic elbow fitting
,Plastic nozzle connector for injection molding
,OEM fluid nozzle connector with warranty
-
Product NameCar Headlights Lamp Shell Molds,Plastic Gears Mold,Plastic Injection Mould,Mould For Sale Ejector Filter Plastic Mould Manufacturer In China,Plastic Injection Molding Manufacturers
-
Surface TreatmentMirror Polish,Polish. Etched. Texture,Nitride,Satin,texture
-
CavityMulti Cavity,Based,Single-cavity / Multi-cavity,Single,Single.Multi
-
MaterialSteel,PP,plastics,PMMA,Steel/P20/718/Nak80/S316/AISI H13
-
NameInjection Plastic Mould,Customized Plastic Mold,Plastic Bobbin Mould,Recyclable Standard Size Plastic Pallet /Plastic Injection Mould,Professional Industrial Part Plastic Injection Mold Manufacturer
-
Mould Life250000-300000shots,300000-500000 Shots,500000shots,000 ~1million Shots,500
-
RunnerHot Runner\ Cold Runner,Hot Or Cold,Cold
-
Mould BaseLKM,DME,HASCO,LKM Mould Base,Mr.Mould Customed
-
SizeAs Drawing,Customized Size
-
Place of OriginDongguan, China
-
Brand NameMID MOULD
-
CertificationISO9001, ROHS, UL (if applicable)
-
Minimum Order Quantity500–1000 pcs (adjustable depending on project)
-
PriceUSD $0.1–$3.5 per piece (depends on material, part size, and volume)
-
Packaging DetailsPlastic bag + carton box, or customized packaging
-
Delivery Time7–20 working days (faster for small batch)
-
Payment Terms50% deposit + balance before shipment
-
Supply AbilityUp to 50,000 pcs per day depending on mold cavitation and cycle time

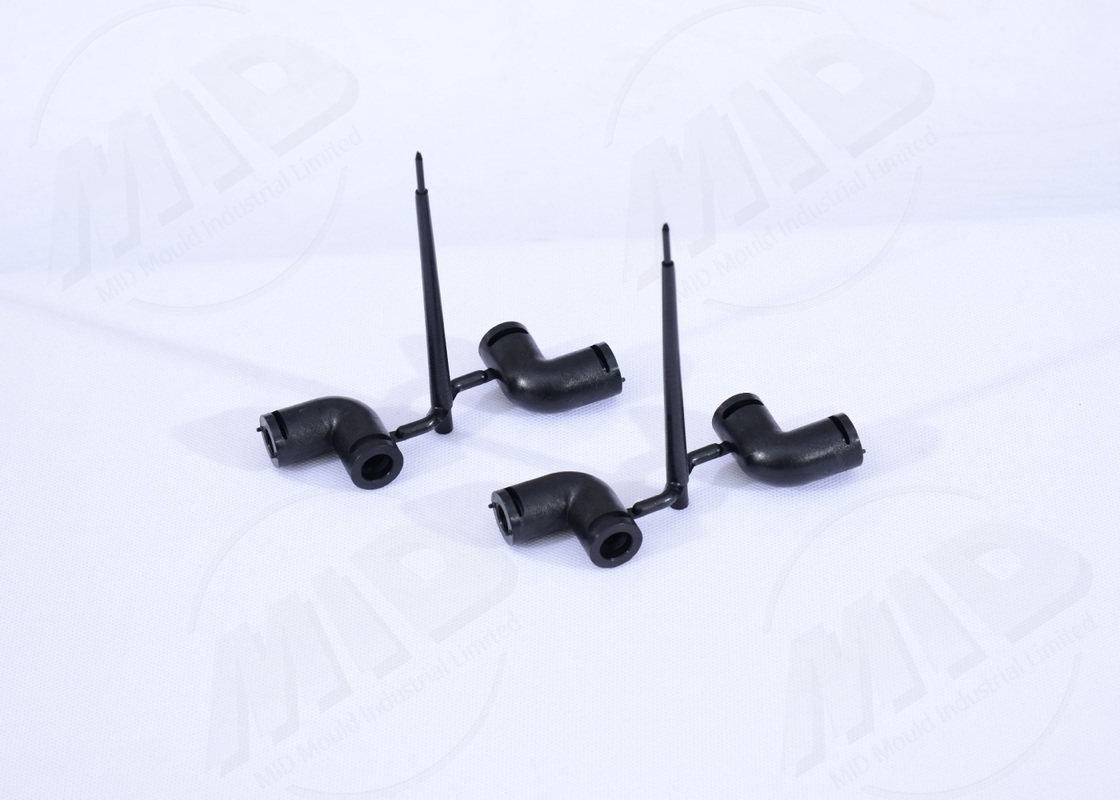

Industrial Injection Molding Fluid Nozzle Connector Plastic Elbow Fitting OEM
Industrial Injection Molding Fluid Nozzle Connector Plastic Elbow Fitting OEM
Process Introduction
This precision-engineered nozzle/fitting is designed for fluid delivery and industrial piping systems. Manufactured through injection molding using high-performance engineering plastics (PP, PA, POM), it features a straight needle design for optimal pressure resistance, leak-proof performance, and exceptional wear resistance.
Process Flow
- Design
- Mold Processing
- Injection Molding
- Seal Testing
- Assembly/Packaging
- Shipping
Product Specifications
| Parameter | Value Range/Description |
|---|---|
| Process | Injection Molding, Insert Molding |
| Material | PP, PA6, POM |
| Accuracy | ±0.05–0.1 mm |
| Dimension Range | ≤50 mm |
| Features | Elbow Fitting + Straight Needle |
| Surface Finish | Smooth, Polished |
| Mold Life | 200,000–800,000 cycles |
| Batch Size | 1,000–100,000 pieces |
| Cycle Time | 15–25 days |
| Applications | Fluid Systems, Industrial Piping |
Applications and Advantages
Applications
- Industrial fluid delivery systems
- Liquid/gas piping connections
- Medical and laboratory fluid systems
Advantages
- Excellent pressure resistance with leak-proof performance
- Flexible material selection for different fluid compatibility
- Combined elbow + needle tube structure for easy installation
- Cost-effective mass production
- Extended mold life with high reusability
Frequently Asked Questions
Is it high-pressure resistant?
Available in PA6 and POM materials for enhanced pressure resistance.
Can it be made in different diameters?
Fully customizable to meet specific requirements.
Can you support small batches?
Minimum order quantity: 1,000 pieces.
Is it corrosion-resistant?
PP material offers excellent chemical resistance.
Turnaround time?
Standard production cycle: 15–25 days.
Customization Options
We offer complete customization including port diameters, needle tube lengths, and elbow angles to meet diverse fluid system requirements. Our engineering team can develop solutions for your specific application needs.
