Medical Injection Molding Needle Free Positive Pressure Connector PC PE TPU OEM
-
Highlight
needle free positive pressure connector
,medical injection molding connector
,PC PE TPU medical connector
-
CavitySingle Cavity/Multi Cavity
-
Accuracy+/-0.1mm
-
Cavity No1*1,1*2,1*4,1*8, Or As Per Your Requests
-
Plastic MaterialPP+PP
-
Mold Material738H 718H NAK80 S136 2344
-
Mould Design SoftwareUg, AotoCAD,Proe
-
Shaping ModeMedical Plastic Injection Mold
-
Mould PriceCost-Effective And Competitive
-
Designe SoftwareUG,PRO-E SOLIWORKS AUTO-CAD,ETC
-
ShipmentBy Sea Or Air , Or Express
-
Quality ControlStrict Quality Control Process
-
Place of OriginDongguan, China
-
Brand NameMID MOULD
-
CertificationISO9001, ROHS, UL (if applicable)
-
Minimum Order Quantity500–1000 pcs (adjustable depending on project)
-
PriceUSD $0.1–$3.5 per piece (depends on material, part size, and volume)
-
Packaging DetailsPlastic bag + carton box, or customized packaging
-
Delivery Time7–20 working days (faster for small batch)
-
Payment Terms50% deposit + balance before shipment
-
Supply AbilityUp to 50,000 pcs per day depending on mold cavitation and cycle time
Medical Injection Molding Needle Free Positive Pressure Connector PC PE TPU OEM
Medical Injection Molding Needle Free Positive Pressure Connector PC PE TPU OEM

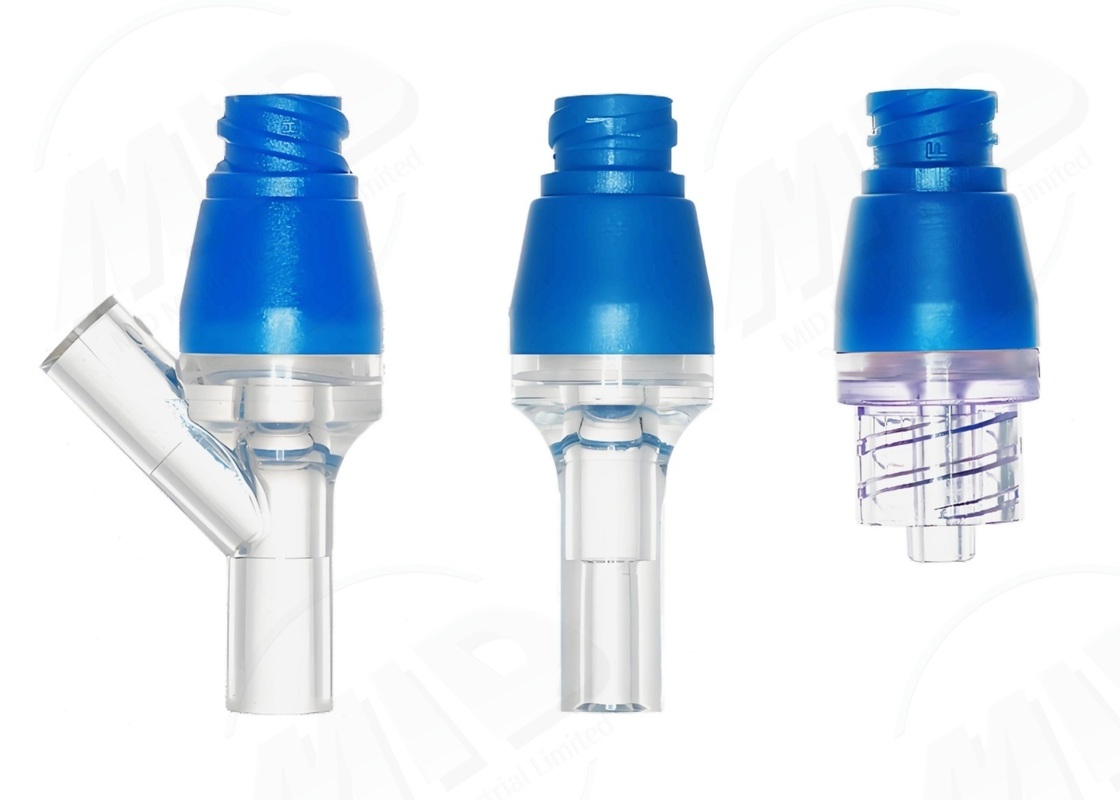

Product Overview
The needle-less positive pressure connector is manufactured using medical-grade PC, PE, and TPU materials through precision injection molding and ultrasonic welding processes. This ensures excellent sealing, antibacterial properties, and positive pressure functionality, making it widely used in intravenous infusion systems.
Manufacturing Process
- Drying of medical-grade raw materials
- Multi-cavity mold injection molding
- Ultrasonic welding of components
- Sealing and pressure testing
- Sterile packaging
Product Specifications
| Parameter | Value Range/Description |
|---|---|
| Material | PC, PE, TPU |
| Accuracy | ±0.03 mm |
| Mold Life | 300,000–800,000 cycles |
| Pressure Resistance | ≥0.5 MPa |
| Temperature Range | -20℃ ~ 90℃ |
| Size | Φ3–8 mm |
| Wall Thickness | 1–2 mm |
| Molding Cycle Time | 12–25 seconds |
| Surface Treatment | Polishing, Sterilization |
| Application | Needle-less positive pressure connector for infusion systems |
Usage and Advantages
Used in medical infusion lines to reduce infection risk. Suitable for hospitals, clinics, and nursing homes.
Key Benefits
- Needle-less design reduces cross-contamination
- Positive pressure function prevents blood reflux and blockage
- Excellent sealing prevents leakage
- Transparent housing allows easy visual inspection
- Meets international medical standards
Frequently Asked Questions
Q1: Is it autoclavable?
A1: Yes.
Q2: Does it meet ISO medical standards?
A2: Yes.
Q3: Are different connector sizes available?
A3: Customization is supported.
Q4: Is it compatible with standard infusion tubing?
A4: Yes.
Q5: Do you support OEM?
A5: Yes.
Customization Options
We support customization of connector size, transparency, and material selection to meet various clinical needs.
