Medical Injection Molding Blood Collection Tube Transparent PET PP OEM
-
Highlight
PET blood collection tube
,PP medical injection molding
,OEM transparent medical tube
-
Lead Time1 Month
-
Number Of Cavity2
-
BiocompatibilityBiocompatible
-
Business TypeManufacturer&factory
-
Mold StandardDME
-
CerticationISO9000 2015
-
Body Diameter22mm
-
Plastic MoldingInjection
-
Slide Action1
-
Insert Steel1.2344-HRC46~48
-
Place of OriginDongguan, China
-
Brand NameMID MOULD
-
CertificationISO9001, ROHS, UL (if applicable)
-
Minimum Order Quantity500–1000 pcs (adjustable depending on project)
-
PriceUSD $0.1–$3.5 per piece (depends on material, part size, and volume)
-
Packaging DetailsPlastic bag + carton box, or customized packaging
-
Delivery Time7–20 working days (faster for small batch)
-
Payment Terms50% deposit + balance before shipment
-
Supply AbilityUp to 50,000 pcs per day depending on mold cavitation and cycle time

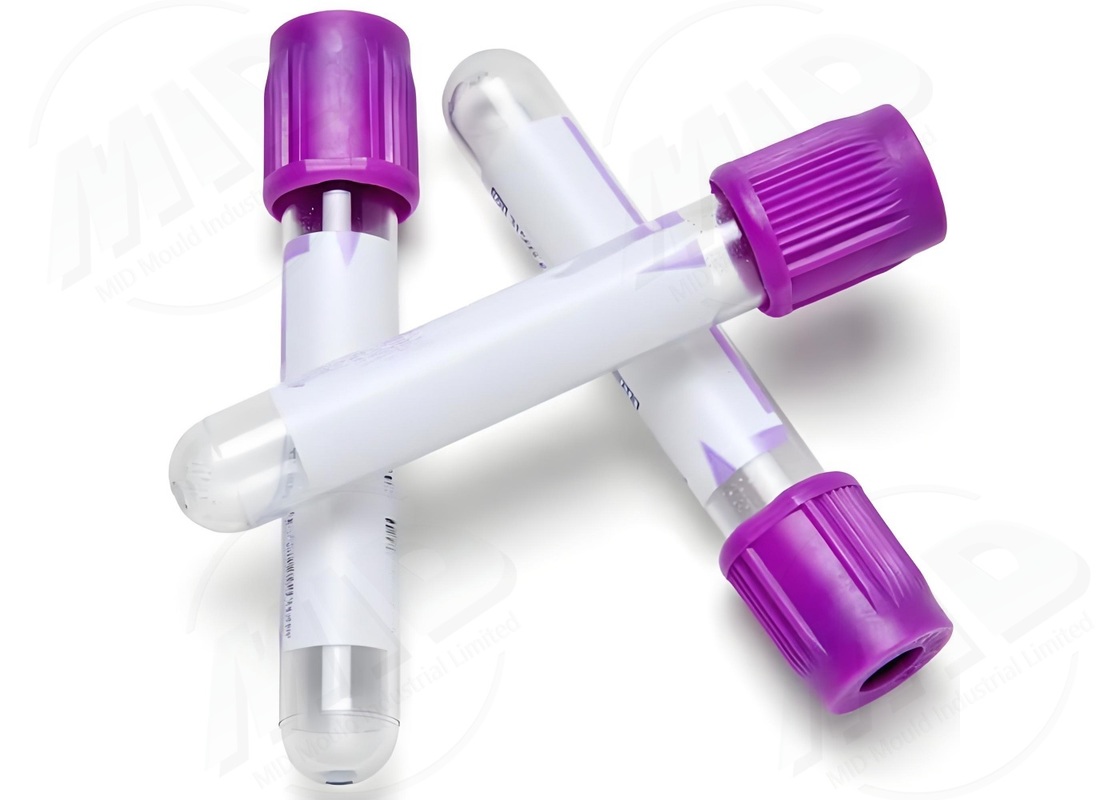

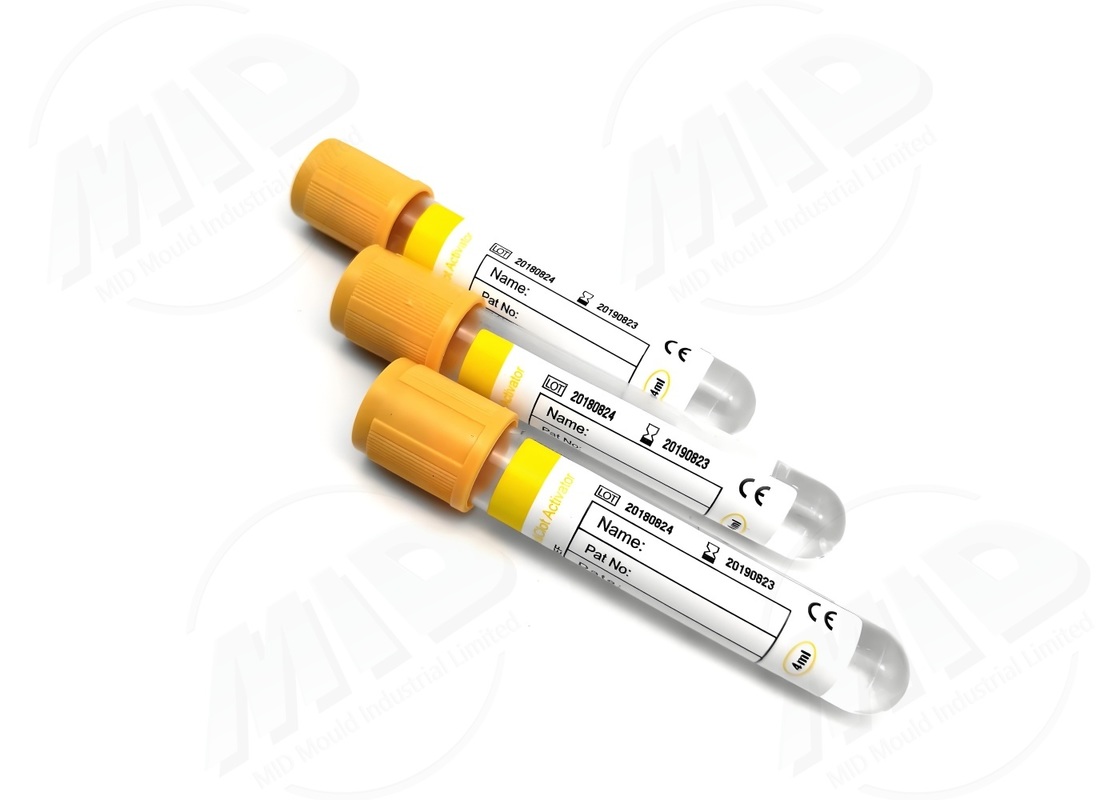

Medical Injection Molding Blood Collection Tube Transparent PET PP OEM
Medical Injection Molding Blood Collection Tube (Transparent PET/PP OEM)
Process Introduction
Our blood collection tubes are manufactured using high-transparency PET, PP, and PS medical-grade materials through a combination of injection molding and blow molding processes, ensuring excellent transparency and safety. Strict cleanroom environment control is maintained throughout the production process to meet the rigorous requirements of the medical industry.
Production Process
- Drying of medical-grade raw materials
- Injection molding (tube mouth, cap)
- Blow molding/extrusion molding (transparent tube body)
- Surface sterilization
- Cleanroom packaging
Product Parameters
| Parameter | Value Range/Description |
|---|---|
| Material | PET, PP, PS (medical grade) |
| Transparency | High light transmittance ≥95% |
| Accuracy | ±0.05 mm |
| Mold life | 300,000–800,000 cycles |
| Temperature resistance | -20℃ ~ 70℃ |
| Size | Φ10–16 mm, customizable |
| Wall thickness | 0.8–2 mm |
| Molding cycle | 10–25 seconds |
| Surface treatment | Sterilization, printed scale markings |
| Application | Disposable medical blood collection tubes |
Uses and Advantages
- Used for clinical blood collection in hospitals and sample storage in laboratories
- Suitable for automated testing equipment
Key Advantages
- High transparency for easy observation of blood samples
- Medical-grade material, safe and non-toxic
- Clear scale markings for easy operation
- Stable mass production
- OEM customization available
FAQ
Q1: Is it non-toxic and environmentally friendly?
A1: Yes, made of medical-grade materials.
Q2: Are scale markings available?
A2: Custom printed scale markings are available.
Q3: Can it be sterilized at high temperature?
A3: Yes, ethylene oxide sterilization is supported.
Q4: Do you support small batch orders?
A4: Yes.
Q5: Is it export compliant?
A5: Compliant with CE and ISO13485 standards.
Customized Mold Design
We support different sizes, scale markings, colors, and closure designs to meet various application needs.
